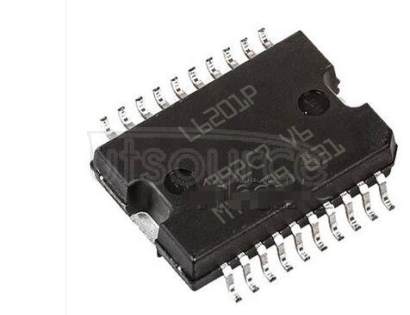

DMOS FULL BRIDGE DRIVER
- Motor Type: Brushed DC
- Brand: STMicroelectronics
- Package / Case: SOP20
- Output Configuration: Full Bridge
- Maximum IGBT Collector Current: 4A
- Maximum Collector Emitter Voltage: 48 V
- Mounting Type: Surface Mount
- Package Type: PowerSO
- Maximum Operating Supply Voltage: 48 V
- Pin Count: 20
- Minimum Operating Supply Voltage: 12 V
- Width: 11.1mm
- Length: 16mm
- Dimensions: 16 x 11.1 x 3.3mm
- Maximum Operating Temperature: +150 °C
- Minimum Operating Temperature: -40 °C
- Height: 3.3mm
