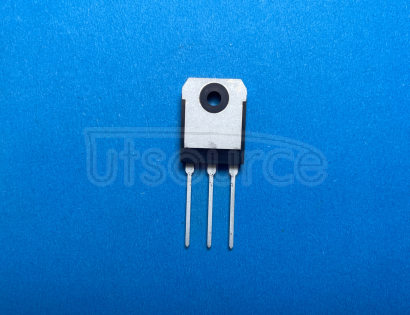

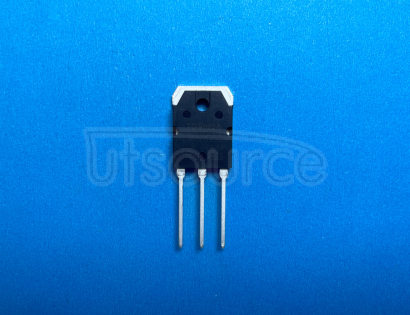

GT50JR22 50JR22 IGBT

Utsource certified original

Utsource certified original parts provide the following guarantees:

1. Utsource guarantees 100% original.

2. Utsource certified original parts can be returned and refunded unconditionally within 90 days.

Transistor Type: IGBT
Package / Case: TO-3P
Collector-Emitter Voltage (V): 600 V
Collector Current (IC): 50 A
Gate-Emitter Voltage (VGE): ±20 V
Max Junction Temperature (TJ): 175 °C
Collector Dissipation (PC): 250 W
Package Type: TO-3P
Configuration: Single IGBT
Turn-On Time (Ton): 35 ns
Turn-Off Time (Toff): 250 ns
Operating Temperature Range: -40°C to +150°C
Mounting Style: Through Hole

Model comparison: GT50JR22 50JR22 IGBT vs YGW50N65F1 comparison
