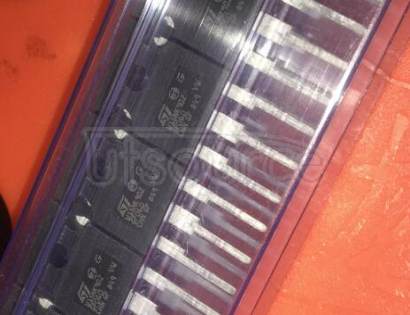

W15NK90Z STW15NK90Z 15A 900V MOS(1PCS)

Utsource certified original

Utsource certified original parts provide the following guarantees:

1. Utsource guarantees 100% original.

2. Utsource certified original parts can be returned and refunded unconditionally within 90 days.

Configuration: N-channel MOSFET
Brand: STMicroelectronics
Package / Case: TO-247
Maximum Drain Source Voltage (Vds): 900V
Continuous Drain Current (Id): 15A
Maximum Power Dissipation (Pd): 300W
Gate Threshold Voltage (Vgs(th)): 3 - 5V
Maximum Gate-Source Voltage (Vgs): ±30V
Drain-Source On-Resistance (Rds(on)): 0.55Ω
Rise Time (tr): 83 ns
Turn-On Delay Time (td(on)): 20 ns
Turn-Off Delay Time (td(off)): 73 ns
Package Type: TO-247
Operational Temperature Range: -55°C to 150°C
Input Capacitance (Ciss): 5200 pF
Output Capacitance (Coss): 470 pF
Reverse Transfer Capacitance (Crss): 100 pF
