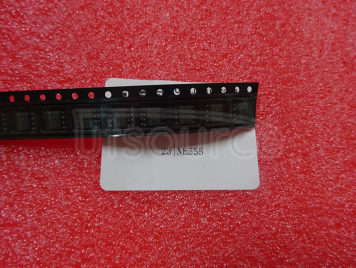

NE555

USED

Utsource certified used parts

Utsource certified used parts provide the following guarantees:

1. Utsource will inspect the goods, including appearance inspection (no serious damage to the appearance), select qualified and honest suppliers, and ensure 98% qualification rate.

2. Some parts are tested by machine.

3. Utsource certified parts can be returned and refunded unconditionally within 60 days.

Description

Precision Timers

ECAD Module
Manufacturer Part Number: NE555
Brand: Ti/st
Package / Case: SOP-8
Category: Integrated Circuits (ICs)
Warranty: 100% Perfect Functions

All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

ECAD Module

Product Attributes

Part Number: NE555 Description: The NE555 is a highly stable device for generating accurate time delays or oscillation. Features: Timing from microseconds through hours Operates in both astable and monostable modes Adjustable duty cycle TTL compatible Output can source or sink up to 200mA Temperature stability of 0.005% per °C Applications: Pulse generation Sequential timing Time delay generation Pulse width modulation Pulse position modulation Linear ramp generator Low frequency oscillators (For reference only)

Introduce this Module:

The 555 timer IC was introduced in the year 1970 by Signetic Corporation and gave the name NE 555 timer. It is in a single 8 pin. Apart from its applications as a monostable multivibrator and A stable Multivibrator, DC-DC Converters, digital logic probes, waveform generators, analog frequency meters measurement, temperature control, volt regulators, etc.

Some Core Parameters of the Module:

SPECIAL FEATURES :

● High Current Drive Capability (200mA)

● Adjustable Duty Cycle

● Temperature Stability of 0.005%/℃

● Timing From μSec to Hours

● Turn off Time Less Than 2μSec

How it Uses in the work:

SupplierFile/202006/23/f_680e6f1991ab4f3198160cad1adf103e.png

Internal Block Diagram:

SupplierFile/202006/23/f_c336e3d7f7184fa7b62ac60f568284e7.png

NE555 Pinout Connections:

● Pin 1 - Ground (GND) This pin is connected to the circuit ground.

● Pin 2 - Trigger (TRI) Active low trigger input that starts the timer.

● Pin 3 - Output (O/P) Timer output pin.

● Pin 4 - Reset (RES) A low voltage (less than 0.7V) the reset pin will cause the output pin to go low. This input should remain connected to Power Supply when not used.

● Pin 5 - Control voltage (CON): Used to adj the threshold voltage if required. This should be left dis-connected if the function is not required. A 0.01uF Capacitor to Ground can be used in electrically noisy circuits.

● Pin 6 - Threshold (TRE) In both a stable and monostable mode the voltage across the timing capacitor is monitored through the Threshold input. When the voltage at this input rises above the threshold value the output will go from 1 to 0.

● Pin 7 – Discharge (DIS) Output pin that is used to discharge the timing capacitor.

● Pin 8 – Supply voltage (VCC) A positive supply voltage terminal. The supply voltage range is usually between +5V to +15V.

Preview of the first 3 pages of the data sheet

Related products with the same datasheet

NE555

Precision Timers

NE555DE4

555 Type, Timer/Oscillator (Single) IC 100kHz 8-SOIC

NE555V

2014-11-11

Some Part number from the same manufacture

74HCT86M

Quad 2-input EXCLUSIVE-OR gate 2

SE555D

PRECISION TIMERS

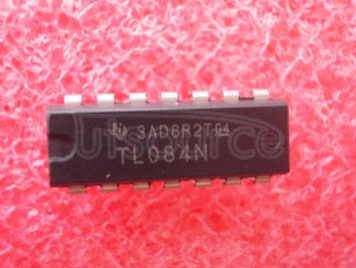

TL084N

JFET-INPUT OPERATIONAL AMPLIFIERS

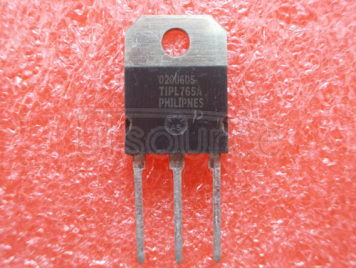

TIPL765A

NPN SILICON POWER TRANSISTORS

NE555

Precision Timers

TL072ACP

LOW-NOISE JFET-INPUT OPERATIONAL AMPLIFIERS

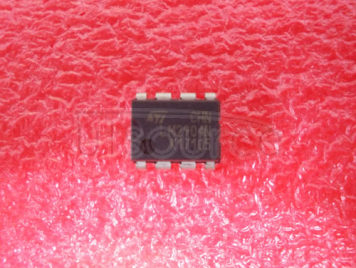

LM2904N

Dual Operational Amplifier; Package: DIP; No of Pins: 8; Container: Rail

ULQ2003AD

DARLINGTON TRANSISTOR ARRAY

Same catergory

HYD0SEE0MF2P-5S60E

CD75823B

TW2668-MCLA2-GR

OV09715-V28A

THGBM4G6D2HBAIR

CF-720S

AAM0NA

TA0703A

Product Reviews
