SILICON CONTROLLED RECTIFIERS
All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
The parameters and performance indicators of this product are sourced from the internet. In case of discrepancies, please refer to the manufacturer's technical specifications!！

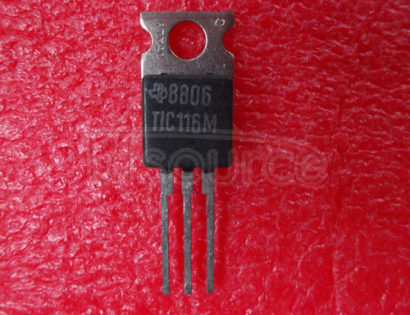

The TIC116M is a Silicon Controlled Rectifier (SCR) designed for various electronic applications. It features a robust construction with a TO-220 package and through-hole mounting, making it suitable for power control circuits. Below are the detailed specifications and parameters of the TIC116M SCR.
| Parameter | Value |
|---|---|
| Device Type | SCR (Silicon Controlled Rectifier) |
| Maximum Repetitive Peak Off-State Voltage (VDRM, VRRM) | 600 V |
| Maximum RMS On-State Current (IT(RMS)) | 8 A |
| Maximum Non-Repetitive Peak Surge Current (ITSM) | 5000 A |
| Maximum Gate Trigger Current | 20 mA |
| Maximum Gate Trigger Voltage | 1.5 V |
| Maximum Holding Current | 40 mA |
| Maximum Leakage Current | 2 mA |
| Operating Frequency | <1 MHz or Unknown |
| Package Type | TO-220AB |
| Number of Pins/Terminals | 3 |
| Mounting Style | Through-Hole |
| Operating Temperature Range | -40°C to +110°C |
| Substitute Models | BSTC1040M, CS6-06, S2800M, TAG660-600 |
The TIC116M SCR is commonly used in power control systems, motor drives, lighting controls, and other industrial applications where reliable switching and high voltage handling are required.
The TIC116M is manufactured by several companies, including Bourns, New Jersey Semiconductor, Power Innovations Limited, and Texas Instruments. Each manufacturer may have slight variations in specifications, but the core functionality remains consistent.
This comprehensive overview provides essential details about the TIC116M SCR, ensuring that engineers and designers can make informed decisions when selecting this component for their projects.
| QUANTITY | UNIT PRICE | PLUS UNIT PRICE | TOTAL PRICE |
|---|---|---|---|
| ≥1: | US $1.77000 | US $1.59300 | US $1.59300 |
| ≥5: | US $1.18000 | US $1.06200 | US $5.31000 |
| ≥10: | US $1.06200 | US $0.95580 | US $9.55800 |
| ≥20: | US $1.03250 | US $0.92925 | US $18.58500 |
| ≥50: | US $1.00300 | US $0.90270 | US $45.13500 |
| ≥100: | US $0.97350 | US $0.87615 | US $87.61500 |
| ≥200: | US $0.94400 | US $0.84960 | US $169.92000 |
| ≥500: | US $0.93220 | US $0.83898 | US $419.49000 |
| ≥1000: | US $0.91450 | US $0.82305 | US $823.05000 |
Substitute (equivalent) Product
| Product Name | Description |
|---|---|
| TIC126M | Triac, 800V, 16A, TO-220 |
| TIC226M | Triac, 800V, 25A, TO-220 |
| BTA16-600BW | Triac, 600V, 16A, TO-220 |
| MTW41 | Triac, 800V, 16A, TO-220 |
| BCR1AM | Triac, 600V, 16A, TO-220 |
Product Usage
The TIC116M is a triac, which is a type of thyristor used for controlling alternating current (AC) in various applications. It is commonly used in circuits that require the switching or regulation of AC power. Here are some typical applications and circuits where the TIC116M might be found:
Light Dimmers:
Motor Speed Control:
Heating Elements:
Power Supplies:
Relay Circuits:
Inverter Circuits:
Appliance Control:
Industrial Automation:
Here is a basic example of a light dimmer circuit using the TIC116M:
1.4 Million+ Like Utsource
Upload BOM
Required+-----------------+
| |
| AC Power |
| (120V/240V) |
| |
+-----------------+
|
|
[R1] (Resistor)
|
|
+---------+---------+
| |
| TIC116M Triac |
| (MT1) |
| |
+---------------------+
|
|
[R2] (Resistor)
|
|
[C1] (Capacitor)
|
|
[D1] (Diode)
|
|
[R3] (Resistor)
|
|
[VR1] (Variable Resistor)
|
|
[Gate]
|
|
+---------------------+
| |
| Load (Light Bulb) |
| |
+---------------------+
|
|
+-----------------+
| |
| Neutral |
| (0V) |
| |
+-----------------+
This circuit works by varying the phase angle at which the triac conducts each half cycle of the AC waveform, effectively controlling the average power delivered to the load (light bulb).
If you need more detailed information or specific circuit diagrams, feel free to ask!
