Utsource certified used parts
Utsource certified used parts provide the following guarantees:
1. Utsource will inspect the goods, including appearance inspection (no serious damage to the appearance), select qualified and honest suppliers, and ensure 98% qualification rate.
2. Some parts are tested by machine.
3. Utsource certified parts can be returned and refunded unconditionally within 60 days.
Description

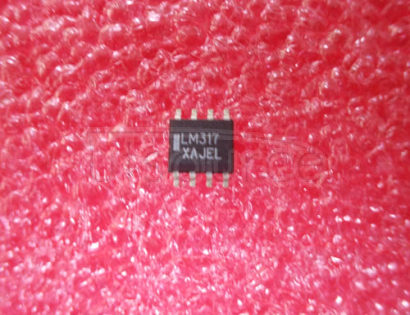

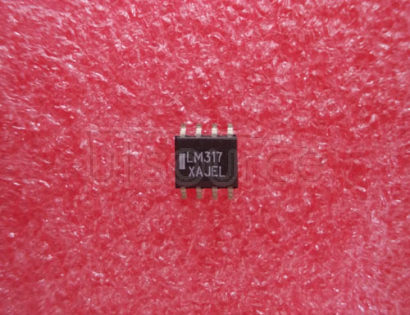

3-TERMINAL 1A POSTIVE ADJUSTABLE REGULATOR
All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
The parameters and performance indicators of this product are sourced from the internet. In case of discrepancies, please refer to the manufacturer's technical specifications!！
1.5 A Adjustable Output, Positive Voltage Regulator
The LM317 is an adjustable 3-terminal positive voltage regulator capable of supplying in excess of 1.5 A over an output voltage range of 1.2 V to 37 V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, it employs internal current limiting, thermal shutdown and safe area compensation, making it essentially blow-out proof.
The LM317 serves a wide variety of applications including local, on card regulation. This device can also be used to make a programmable output regulator, or by connecting a fixed resistor between the adjustment and output, the LM317 can be used as a precision current regulator.
● Output Current in Excess of 1.5 A
● Output Adjustable between 1.2 V and 37 V
● Internal Thermal Overload Protection
● Internal Short Circuit Current Limiting Constant with Temperature
● Output Transistor Safe-Area Compensation
● Floating Operation for High Voltage Applications
● Available in Surface Mount D2PAK, and Standard 3-Lead Transistor Package
● Eliminates Stocking many Fixed Voltages
| QUANTITY | UNIT PRICE | PLUS UNIT PRICE | TOTAL PRICE |
|---|---|---|---|
| ≥1: | US $1.26900 | US $1.14210 | US $1.14210 |
| ≥5: | US $0.84600 | US $0.76140 | US $3.80700 |
| ≥10: | US $0.76140 | US $0.68526 | US $6.85260 |
| ≥20: | US $0.74025 | US $0.66623 | US $13.32460 |
| ≥50: | US $0.71910 | US $0.64719 | US $32.35950 |
| ≥100: | US $0.69795 | US $0.62816 | US $62.81600 |
| ≥200: | US $0.67680 | US $0.60912 | US $121.82400 |
| ≥500: | US $0.66834 | US $0.60151 | US $300.75500 |
| ≥1000: | US $0.65565 | US $0.59009 | US $590.09000 |
Substitute (equivalent) Product
| Product Name | Description |
|---|---|
| LM117 | A high-performance adjustable three-terminal positive voltage regulator capable of supplying more than 1.5A over an output voltage range of 1.2V to 37V. |
| LT1086 | A low dropout linear regulator that can provide up to 1.5A of output current with a dropout voltage as low as 1.2V. |
| TL783 | A high-performance adjustable three-terminal positive voltage regulator that can deliver up to 1.5A of output current. It is pin-compatible with the LM317. |
| LD1086 | A low dropout linear voltage regulator available in fixed and adjustable versions, capable of delivering up to 1.5A with a dropout voltage of 1.2V. |
| KA317 | An adjustable three-terminal positive voltage regulator similar to the LM317, providing up to 1.5A of output current with a dropout voltage of 1.2V. |
| MC78S | A series of adjustable linear voltage regulators that can provide up to 1.5A of output current, with a dropout voltage of 1.2V. |
| LM217 | A high-performance adjustable three-terminal positive voltage regulator designed for high-reliability applications, capable of supplying up to 1.5A of output current. |
Product Usage
The LM317 is a widely used adjustable linear voltage regulator that can provide a stable output voltage from 1.25V to 37V, with an input voltage range of 3V to 40V. It is popular in various circuits due to its flexibility, reliability, and ease of use. Here are some common circuits and applications where the LM317 is frequently used:
These are just a few examples of the many circuits and applications where the LM317 is commonly used. Its versatility and simplicity make it a valuable component in a wide range of electronic designs.
Global Logistics Country List
| Flag | Country | Estimated Delivery Time | Minimum First Weight Cost | ||
|---|---|---|---|---|---|
| Express | Standard Shipping | Express (0.5kg) | Standard Shipping (0.05kg) | ||
ExpandOrder
Payment
Shipping
Gift Coupon/Plus service
Returning
Returns are normally accepted when completed within 90 days from the date of the parcel delivered.
Defective ( Please provide a third party quality report of nonconforming products)
Return Freight charges must be prepaid; we will not accept COD shipments.
Warranty
All UTSOURCE purchases have a 90 days money back return policy, plus a 100 days UTSOURCE warranty against any manufacturing defects.This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by customer to follow instructions, product modification, negligent or improper operation.
LM317
LM317 has several brands around the world that may have alternate names for LM317 due to regional differences or acquisition. LM317 may also be known as the following names:
