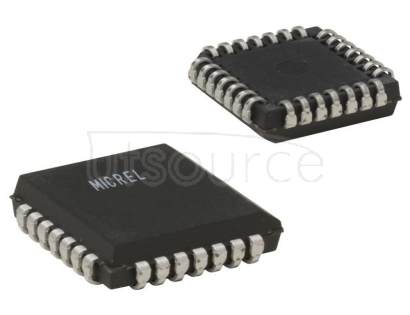

SY100S317JZ-TR

USED

Used and refurbished parts guaranteed can work well

AND/OR Gate Configurable 3 Circuit 12 Input (4, 4, 4) Input 28-PLCC (11.5x11.5)

Series: 100S
Brand: Microchip Technology
Package / Case: 28-LCC (J-Lead)
Packaging: Tape & Reel (TR)
Part Status: Obsolete
Logic Type: AND/OR Gate
Number of Circuits: 3
Number of Inputs: 12 Input (4, 4, 4)
Schmitt Trigger Input: No
Output Type: Differential
Current - Output High, Low: -
Voltage - Supply: 4.2 V ~ 5.5 V
Operating Temperature: 0°C ~ 85°C
Mounting Type: Surface Mount
Supplier Device Package: 28-PLCC (11.5x11.5)
