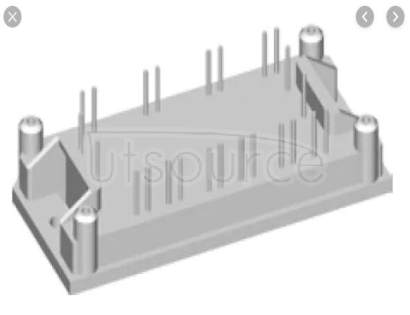

MUBW15-06A6K

Utsource certified used parts

Utsource certified used parts provide the following guarantees:

1. Utsource will inspect the goods, including appearance inspection (no serious damage to the appearance), select qualified and honest suppliers, and ensure 98% qualification rate.

2. Some parts are tested by machine.

3. Utsource certified parts can be returned and refunded unconditionally within 60 days.

Manufacturer Part Number: MUBW15-06A6K
Package / Case: IGBT x111e1-pack
Category: Discrete Semiconductor
Voltage - Collector Emitter Breakdown (Max): 600V
Vce(on) (Max) @ Vge, Ic: 2.9V @ 15V, 15A
Supplier Device Package: E1
Series: -
Power - Max: 75W
Operating Temperature: -40°C ~ 125°C (TJ)
NTC Thermistor: Yes
Mounting Type: Chassis Mount
Input Capacitance (Cies) @ Vce: 0.6nF @ 25V
Input: Three Phase Bridge Rectifier
IGBT Type: NPT
Current - Collector Cutoff (Max): 600μA
Current - Collector (Ic) (Max): 19A
Configuration: Three Phase Inverter with Brake
