Description

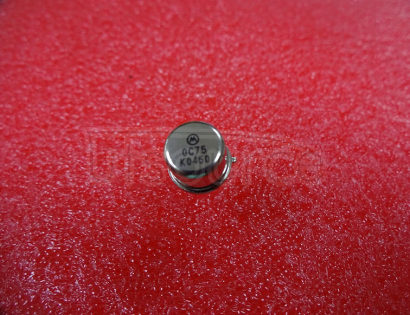

TRANSISTOR | BJT | PNP | 30V VBRCEO | 100MA IC | TO-1
All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
The parameters and performance indicators of this product are sourced from the internet. In case of discrepancies, please refer to the manufacturer's technical specifications!！
OC75 is a general-purpose PNP silicon transistor widely used in audio amplification and switching applications.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCEO) | 30 V |
| Collector Current (IC) | 100 mA |
| DC Current Gain (hFE) | 125–475 |
| Power Dissipation (Ptot) | 300 mW |
| QUANTITY | UNIT PRICE | PLUS UNIT PRICE | TOTAL PRICE |
|---|---|---|---|
| ≥1: | US $3.33840 | US $3.00456 | US $3.00456 |
| ≥5: | US $2.22560 | US $2.00304 | US $10.01520 |
| ≥10: | US $2.00304 | US $1.80274 | US $18.02740 |
| ≥20: | US $1.94740 | US $1.75266 | US $35.05320 |
| ≥50: | US $1.89176 | US $1.70258 | US $85.12900 |
| ≥100: | US $1.83612 | US $1.65251 | US $165.25100 |
| ≥200: | US $1.78048 | US $1.60243 | US $320.48600 |
| ≥500: | US $1.75822 | US $1.58240 | US $791.20000 |
| ≥1000: | US $1.72484 | US $1.55236 | US $1552.36000 |
Substitute (equivalent) Product
| Substitute Product | Description |
|---|---|
| AC125 | Germanium PNP transistor, low leakage current, suitable for audio and small signal applications. |
| GT313 | Low power PNP germanium transistor often used in vintage audio equipment. |
| NKT275 | PNP germanium transistor with similar characteristics, commonly used in fuzz pedal circuits. |
| 2SB175 | PNP germanium transistor suitable for low frequency amplifier and switching applications. |
| 2N404 | General-purpose PNP germanium transistor, widely used in various analog applications. |
Product Usage
The OC75 is a germanium PNP transistor that was widely used in the 1960s and 1970s. Some circuits where you might find the OC75 include:
Audio Amplifiers: Given its gain characteristics, the OC75 was commonly used in the low to medium power audio amplifiers.
Radio Frequency (RF) Amplifiers: It could be used in the RF amplifier stages of older transistor radios.
Oscillator Circuits: The OC75 was used in various oscillator designs for generating audio frequencies, such as in tone generators.
Switching Circuits: Its properties were suitable for switching applications in various electronic devices.
Analog Signal Processing: It could be found in early analog signal processing circuits.
Effects Pedals for Guitars: Early fuzz and distortion effects pedals (like the iconic Tone Bender) often used OC75 transistors because of their characteristic sound.
Remember that Germanium transistors like the OC75 are susceptible to temperature variations, which can affect their performance. They have largely been replaced by silicon transistors in most applications today.
