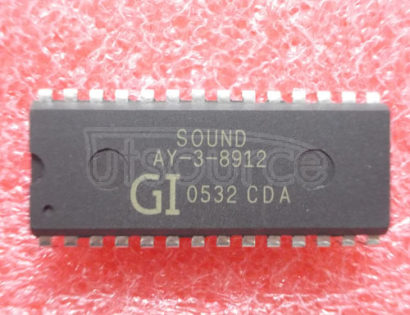

AY-3-8912
Category: IC Chips
Description: Programmable Sound Generator
Price range ($)
19.77540 21.49500
Order
- Users could add parts to cart and upload BOM when they searching parts, calculate cost in a second, offer you the best bill of materials.
- Some specific products need to reach the minimum order quantity.
- Users could get coupons randomly when they applied plus member. Utsource offers different buying options with different product quality from different seller stores when placing orders.
- Users could add products to“inquiry cart" and submit your inquiry, utsource will send quotation email to you.
- If you need add additional order instructions like Tax Invoice or Remark, please put them on the ordering information page.
- All order information could be checked in your "account center"page
- Please confirm the product description when placing order.
- The order can’t be canceled after shipment, so please email customer service to revise order details before shipment.
- Utsource Mobile browser version and APP could be downloaded to find parts anytime, anywhere if needed.
- Please choose right language and currency to place order if needed.
Payment
- UTSOURCE supports global payments, including mainstream US PAYPAL, credit cards (VISA, MASTERCARD, AMERICAN EXPRESS, JCB), WEST UNION, Moneygram;
- Popular payment in Europe: SofortBanking, Trustpay, Paysafecard;
- Middle East: CashU, Onecard;
- Southeast Asia : MOLPay;
- Russia commonly used: Qiwi, Yandex Money, WebMoney;
- The Dutch payment: iDEAL, Polish Dotpay,
- Brazilian payment: Boleto
- These above payments have a high market share in the local area with better payment experience, simpler payment method.
Shipping
- USPS, FedEx, DHL, and UPS could be selected.
- Express: (FEDEX, UPS, DHL, TNT)Free shipping on first 0.5kg for orders over 200$, Overweight will be charged separately.
- It is available for users to select "Freight Collect"depending on their requirement
- It may cost additional remote fees for delivery if you are in a remote area.
- Shipping price for your order will be calculated automatically in the shopping cart.If you have any questions about shipping costs, you can write to us and we will confirm it manually.
- For in-stock parts, orders normally could be shipped out within 1-2days.
- Delivery date: usually 2 to 5 working days.
- Shipping Tracking Number will be sent by email or you can go to APP or website "account center" to check once your order has been shipped.
- Invoice could be downloaded from "account center" > "my invoice" if needed
Gift Coupon/Plus service
- You could receive US $5 shipping coupon (applicable to new users)
- Offer 30-day PLUS free trial service( The plus service will be stopped automatically after the end of the trial, and no extra charge will be generated. Commodity prices are usually reduced by 10%)
- “Funds account” could be used for your next order purchase If you have money that has been returned to your “Funds account”. (You could check it in “My Account” > “Funds account” )
- Utsource offers professional customer service worldwide in USA, Mexico, Brazil, Italy, France, Germany and many other places.
Returning
Returns are normally accepted when completed within 60 days from the date of the parcel delivered.
Defective ( Please provide a third party quality report of nonconforming products)
Return Freight charges must be prepaid; we will not accept COD shipments.
Warranty
All UTSOURCE purchases have a 60 days money back return policy, plus a 90 days UTSOURCE warranty against any manufacturing defects.This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by customer to follow instructions, product modification, negligent or improper operation.
AY-3-8912
AY-3-8912 has several brands around the world that may have alternate names for AY-3-8912 due to regional differences or acquisition. AY-3-8912 may also be known as the following names:
All sellers
1
Brand new
1
Certified preowned
1
Official
1
Third Party
1
Description
AY-3-8912
Stock:0 |
GI |
Programmable Sound Generator |
≥1: US $21.49500 US $19.34550 ≥2: US $21.49500 US $19.34550 ≥5: US $20.77850 US $18.70065 ≥10: US $20.49190 US $18.44271 ≥20: US $20.34860 US $18.31374 ≥30: US $20.06200 US $18.05580 ≥50: US $20.06200 US $18.05580 ≥100: US $19.91870 US $17.92683 ≥500: US $19.77540 US $17.79786
More:
Inquiry
|
Out of stock |
FEATURES
● Full Software Control of Sound Generation
● Interfaces to Most 8-Bit and 16-Bit Microprocessors
● Three Independently Programmed Analog Outputs
● Two 8-Bit General Purpose I/O Ports(AY-3-0910)
● One 8-Bit General Purpose l/O Port (AY-3-8912)
● Single +5 Volt Supply
DESCRIPTION
The AY-3-8910/8912/8913 Programmable Sound Generator (PSG) is a LSI Circuit which can produce a wide variety of complex sounds under software control.The AY-3-891078912/8913 is manufactured in the General Instrument N-Channel Ion Implant Process. Operation requires a single +5V power supply, a TTL compatible clock, and a microprocessor controller such as the General Instrument 16-bit CP1610 or one of the PIC1650 series of 8-bit microcomputers.
The PSG is easily interfaced to any bus oriented system. Its flexibility makes it useful in applications such as music synthesis, sound effects generation, audible alarms, tone signalling and FSK modems. The analog sound outputs can each provide 4 bits of logarithmic digital to analog conversion, greatly enhancing the dynamic range of the sounds produced.
In order to perform sound effects while allowing the processor to continue its other tasks,the PSG can continue to produce sound after the initial commands have been given by the control processor. The fact that realistic sound production often involves more than one effect is satisfied by the three independently controllable channels available in the PSG.
All of the circuit control signals are digital in nature and intended to be provided directly by a microprocessor/microcomputer. This means that one PSG can produce the full range of required sounds with no change in external circuitry. Since the frequency response of the PSG ranges from sub-audible at its lowest frequency to post-audible at its highest frequency,there are few sounds which are beyond reproduction with only the simplest electrical connections.
Since most applications of a microprocessor/PSG system would also require interfacing between the outside world and the microprocessor. this facility has been designed into the PS. The AY-3-8910 has two general purpose 8-bit 1/O ports and is supplied in a 40 lead package: the AY-3-8912 has one port and 28 leads: the AY-3-8913 has no ports and 24 leads.
