RequiredDS96176CN
Category: Interface - Drivers, Receivers, Transceivers
Description： RS-485/RS-422 Differential Bus Transceiver
Price range ($)
0.64960 2.79400
Order
- Users could add parts to cart and upload BOM when they searching parts, calculate cost in a second, offer you the best bill of materials.
- Some specific products need to reach the minimum order quantity.
- Users could get coupons randomly when they applied plus member. Utsource offers different buying options with different product quality from different seller stores when placing orders.
- Users could add products to“inquiry cart" and submit your inquiry, utsource will send quotation email to you.
- If you need add additional order instructions like Tax Invoice or Remark, please put them on the ordering information page.
- All order information could be checked in your "account center"page
- Please confirm the product description when placing order.
- The order can’t be canceled after shipment, so please email customer service to revise order details before shipment.
- Utsource Mobile browser version and APP could be downloaded to find parts anytime, anywhere if needed.
- Please choose right language and currency to place order if needed.
Payment
- UTSOURCE supports global payments, including mainstream US PAYPAL, credit cards (VISA, MASTERCARD, AMERICAN EXPRESS, JCB), WEST UNION, Moneygram;
- Popular payment in Europe: SofortBanking, Trustpay, Paysafecard;
- Middle East: CashU, Onecard;
- Southeast Asia : MOLPay;
- Russia commonly used: Qiwi, Yandex Money, WebMoney;
- The Dutch payment: iDEAL, Polish Dotpay,
- Brazilian payment: Boleto
- These above payments have a high market share in the local area with better payment experience, simpler payment method.
Shipping
- USPS, FedEx, DHL, and UPS could be selected.
- Express: (FEDEX, UPS, DHL, TNT)Free shipping on first 0.5kg for orders over 200$, Overweight will be charged separately.
- It is available for users to select "Freight Collect"depending on their requirement
- It may cost additional remote fees for delivery if you are in a remote area.
- Shipping price for your order will be calculated automatically in the shopping cart.If you have any questions about shipping costs, you can write to us and we will confirm it manually.
- For in-stock parts, orders normally could be shipped out within 1-2days.
- Delivery date: usually 2 to 5 working days.
- Shipping Tracking Number will be sent by email or you can go to APP or website "account center" to check once your order has been shipped.
- Invoice could be downloaded from "account center" > "my invoice" if needed
Gift Coupon/Plus service
- You could receive US $5 shipping coupon (applicable to new users)
- Offer 30-day PLUS free trial service( The plus service will be stopped automatically after the end of the trial, and no extra charge will be generated. Commodity prices are usually reduced by 10%)
- “Funds account” could be used for your next order purchase If you have money that has been returned to your “Funds account”. (You could check it in “My Account” > “Funds account” )
- Utsource offers professional customer service worldwide in USA, Mexico, Brazil, Italy, France, Germany and many other places.
Returning
Returns are normally accepted when completed within 60 days from the date of the parcel delivered.
Defective ( Please provide a third party quality report of nonconforming products)
Return Freight charges must be prepaid; we will not accept COD shipments.
Warranty
All UTSOURCE purchases have a 60 days money back return policy, plus a 90 days UTSOURCE warranty against any manufacturing defects.This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by customer to follow instructions, product modification, negligent or improper operation.
DS96176CN
DS96176CN has several brands around the world that may have alternate names for DS96176CN due to regional differences or acquisition. DS96176CN may also be known as the following names:
All sellers
2
Brand new
2
Certified preowned
2
Official
2
Third Party
2
Description

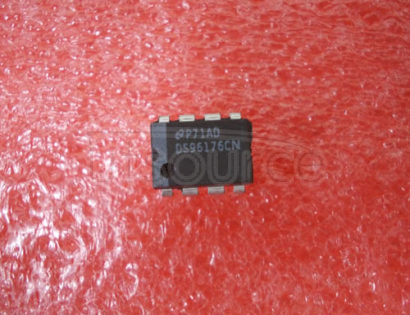

DS96176CN
Stock:9999 |
National Semiconductor |
RS-485/RS-422 Differential Bus Transceiver |
≥1: US $1.25730 US $1.13157 ≥5: US $0.83820 US $0.75438 ≥10: US $0.75438 US $0.67894 ≥20: US $0.73342 US $0.66008 ≥50: US $0.71247 US $0.64122 ≥100: US $0.69152 US $0.62237 ≥200: US $0.67056 US $0.60350 ≥500: US $0.66218 US $0.59596 ≥1000: US $0.64960 US $0.58464
More:
Inquiry
|
|
DS96176CN
Stock:9999 |
National Semiconductor 97+ |
RS-485/RS-422 Differential Bus Transceiver |
≥1: US $2.79400 US $2.51460 ≥5: US $2.65430 US $2.38887 ≥10: US $2.51460 US $2.26314 ≥20: US $2.44475 US $2.20028 ≥50: US $2.37490 US $2.13741 ≥100: US $2.30505 US $2.07455 ≥200: US $2.23520 US $2.01168 ≥500: US $2.20726 US $1.98653 ≥1000: US $2.16535 US $1.94882
More:
Inquiry
|
General Description
The DS96176 Differential Bus Transceiver is a monolithic integrated circuit designed for bidirectional data communication on balanced multipoint bus transmission lines. The transceiver meets EIA Standard RS-485 as well as RS-422A.
The DS96176 combines a TRI-STATE differential line driver and a differential input line receiver, both of which operate from a single 5.0v power supply. The driver and receiver have an active Enable that can be externally connected to function as a direction control.The driver differential outputs and the receiver differential inputs are internally connected to form differential input/output(I/O) bus ports that are designed to offer minimum loading to the bus whenever the driver is disabled or when VCC = 0V.These ports feature wide positive and negative common mode voltage ranges, making the device suitable for multipoint applications in noisy environments.
The driver is designed to handle loads up to 60mA of sink or source current. The driver features positive and negative current-limiting and thermal shutdown for protection from line fault conditions. Thermal shutdown is designed to occur at junction temperature of approximately 160℃.The receiver features a typical input impedance of 15kΩ, an input sensitivity of ±200 mV, and a typical input hysteresis of 50 mV.
The DS96176 can be used in transmission line applications employing the DS96172 and the DS96174 quad differential line drivers and the DS96173 and DS96175 quad differential line receivers.
Features
● Bidirectional transceiver
● Meets EIA Standard RS-422A and RS-485
● Designed for multipoint transmission
● TRI-STATE driver and receiver enables
● Individual driver and receiver enables
● Wide positive and negative inputoutput bus voltage ranges
● Driver output capability ±60 mA Maximum
● Thermal shutdown protection
● Driver positive and Negative current-limiting
● High impedance receiver input
● Receiver input sensitivity of ±200 mV
● Receiver input hysteresis of 50 mV typical
● Operates from single 5.0V supply
● Low power requirements
