FE2010A
FE2010A has several brands around the world that may have alternate names for FE2010A due to regional differences or acquisition. FE2010A may also be known as the following names:
All sellers
1
Brand new
1
Certified preowned
1
Official
1
Third Party
1
Description

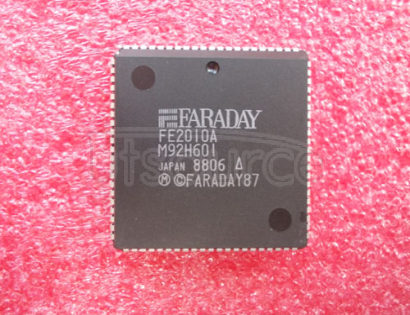

FE2010A
Stock:0 |
Faraday |
Peripheral IC |
≥1: US $102.75000 US $92.47500 ≥2: US $102.75000 US $92.47500 ≥5: US $95.90000 US $86.31000 ≥10: US $95.90000 US $86.31000 ≥20: US $95.90000 US $86.31000 ≥30: US $95.90000 US $86.31000 ≥50: US $95.90000 US $86.31000 ≥100: US $95.21500 US $85.69350 ≥500: US $94.53000 US $85.07700
More:
Inquiry
|
Out of stock |
Description
In computer or CPU based applications there is always an interface present that connects the input / output devices to the computer. This interface provides the communication link between devices and computer.
FE2010A is a PC Bus, CPU and peripheral controller. It is an enhanced version of FE2010. Main difference between FE2010A and FE2010 is that, FE2010A can support higher clock frequencies. It was one of the earliest chipset that were used in computers. FE2010A was used in IBM and Intel motherboards.
Pin Description
FE2010A is available in Plastic Leaded Chip Carrier (PLCC) package. J-type leads are available on all four sides of the IC. It is in square type configuration and occupies less size compared to the pins available on the IC. Pin diagram of the IC is given below.
Pin Number | I/ O | Pin Name | Description |
1 | - | VDD | Power |
2 | - | VSS | Ground |
3 | O | RS2 | RAS 2, Active high |
4 | O | RS3 | RAS 3, Active high |
5 | O | NRAM | RAM Decode, Active low |
6 | O | NEPSL | PROM decode, Active low |
7 | O | NBIOCS | BIOS ROM enable, Active low |
8 | O | SLAD | Address select, Active high |
9 | O | NUSCS | User PROM select, Active low |
10 | O | INT | Interrupt, Active high |
11 | I | A64K | RAM type select |
12 | I | VIDO | Video type 0 |
13 | I | VID1 | Video type 1 |
14 | O | Speaker | Data to speaker |
15 | I | NREST | Reset in, Active low |
16 | I | - | Unused |
17 | O | Ready | Ready to CPU, Active high |
18 | O | Clear | Reset to CPU, Active high |
19 | O | Clock | Clock to CPU, Active high |
20 | O | OSC | OSC to expansion bus |
21 | O | X2 | Crystal output |
22 | - | VSS | Ground |
23 | I | X1 | Crystal input |
24 | I/O | NRQGT | Request to CPU, Active low |
25 | I/O | KBCLK | Keyboard clock |
26 | I/O | KBDA | Keyboard data, Active high |
27 | I | NIOCK | EEPROM from expansion |
28 | I | IORDY | Ready from expansion |
29 | I | APNMI | NMI from co-processor |
30 | O | AEN | DMA cycle, Active high |
31 | O | NMI | Non mask able interrupt, Active high |
32 | I | PTYN | Parity bit from RAM |
33 | O | PTYOUT | Parity bit to RAM |
34 | I/O | AD-0 | Address data bus bit 0 |
35 | I/O | AD-1 | Address data bus bit 1 |
36 | I/O | AD-2 | Address data bus bit 2 |
37 | I/O | AD-3 | Address data bus bit 3 |
38 | I/O | AD-4 | Address data bus bit 4 |
39 | I/O | AD-5 | Address data bus bit 5 |
40 | I/O | AD-6 | Address data bus bit 6 |
41 | I/O | AD-7 | Address data bus bit 7 |
42 | - | VSS | Ground |
43 | - | VDD | Power |
44 | I/O | A-8 | Address bit 8 |
45 | I/O | A-9 | Address bit 9 |
46 | I | A-10 | Address bit 10 |
47 | I | A-11 | Address bit 11 |
48 | I | A-12 | Address bit 12 |
49 | I/O | A-13 | Address bit 13 |
50 | I/O | A-14 | Address bit 14 |
51 | I/O | A-15 | Address bit 15 |
52 | I/O | A-16 | Address bit 16 |
53 | I/O | A-17 | Address bit 17 |
54 | I/O | A-18 | Address bit 18 |
55 | I/O | A-19 | Address bit 19 |
56 | I | DRQ3 | DMA request line 3, Active high |
57 | I | DRQ2 | DMA request line 2, Active high |
58 | I | DRQ1 | DMA request line 1, Active high |
59 | O | EOP | End of process |
60 | O | NDAK3 | DMA acknowledge for channel 3 |
61 | O | NDAK2 | DMA acknowledge for channel 2 |
62 | O | NDAK1 | DMA acknowledge for channel 1 |
63 | O | NDAK0 | DMA acknowledge for channel 0 |
64 | - | VSS | Ground |
65 | O | NIOR | Read command, Active high |
66 | O | NIOW | Write command, Active low |
67 | O | NMEMR | Memory read, Active low |
68 | O | NMEMW | Memory write, Active low |
69 | O | BALE | Address latch enable |
70 | O | ALE | Address lath enable |
71 | O | NDEN | Data enable |
72 | O | DTR | Data transmit |
73 | I | S2 | CPU status Bit |
74 | I | S1 | CPU status Bit |
75 | I | S0 | CPU status Bit |
76 | I | IRQ2 | Interrupt request |
77 | I | IRQ3 | Interrupt request |
78 | I | IRQ4 | Interrupt request |
79 | I | IRQ5 | Interrupt request |
80 | I | IRQ6 | Interrupt request |
81 | I | IRQ7 | Interrupt request |
82 | O | CAS | RAM CAS, Active high |
83 | O | RS0 | RAS0, Active high |
84 | O | RS1 | RAS1, Active high |
IC Electrical Characteristics/ Specifications
Parameter | Description | Value |
VDD | Power supply voltage | -0.5V to +7V |
VI | Input voltage | -0.5V to +0.3V |
VO | Output voltage | -0.5V to +0.3V |
TSTG | Storage temperature | -65℃ to 150℃ |
CI | Input capacitance | 15pF at 1MHz |
CIO | I/O capacitance | 15pF at 1MHz |
SBC design using FE2010A
Block diagram of single board computer using 8088 microprocessors is shown in figure below
