HCPL4200
Category: Optical Couplers
Description: Optically Coupled 20 mA Current Loop Receiver
Price range ($)
0.63705 1.23300
Order
- Users could add parts to cart and upload BOM when they searching parts, calculate cost in a second, offer you the best bill of materials.
- Some specific products need to reach the minimum order quantity.
- Users could get coupons randomly when they applied plus member. Utsource offers different buying options with different product quality from different seller stores when placing orders.
- Users could add products to“inquiry cart" and submit your inquiry, utsource will send quotation email to you.
- If you need add additional order instructions like Tax Invoice or Remark, please put them on the ordering information page.
- All order information could be checked in your "account center"page
- Please confirm the product description when placing order.
- The order can’t be canceled after shipment, so please email customer service to revise order details before shipment.
- Utsource Mobile browser version and APP could be downloaded to find parts anytime, anywhere if needed.
- Please choose right language and currency to place order if needed.
Payment
- UTSOURCE supports global payments, including mainstream US PAYPAL, credit cards (VISA, MASTERCARD, AMERICAN EXPRESS, JCB), WEST UNION, Moneygram;
- Popular payment in Europe: SofortBanking, Trustpay, Paysafecard;
- Middle East: CashU, Onecard;
- Southeast Asia : MOLPay;
- Russia commonly used: Qiwi, Yandex Money, WebMoney;
- The Dutch payment: iDEAL, Polish Dotpay,
- Brazilian payment: Boleto
- These above payments have a high market share in the local area with better payment experience, simpler payment method.
Shipping
- USPS, FedEx, DHL, and UPS could be selected.
- Express: (FEDEX, UPS, DHL, TNT)Free shipping on first 0.5kg for orders over 200$, Overweight will be charged separately.
- It is available for users to select "Freight Collect"depending on their requirement
- It may cost additional remote fees for delivery if you are in a remote area.
- Shipping price for your order will be calculated automatically in the shopping cart.If you have any questions about shipping costs, you can write to us and we will confirm it manually.
- For in-stock parts, orders normally could be shipped out within 1-2days.
- Delivery date: usually 2 to 5 working days.
- Shipping Tracking Number will be sent by email or you can go to APP or website "account center" to check once your order has been shipped.
- Invoice could be downloaded from "account center" > "my invoice" if needed
Gift Coupon/Plus service
- You could receive US $5 shipping coupon (applicable to new users)
- Offer 30-day PLUS free trial service( The plus service will be stopped automatically after the end of the trial, and no extra charge will be generated. Commodity prices are usually reduced by 10%)
- “Funds account” could be used for your next order purchase If you have money that has been returned to your “Funds account”. (You could check it in “My Account” > “Funds account” )
- Utsource offers professional customer service worldwide in USA, Mexico, Brazil, Italy, France, Germany and many other places.
Returning
Returns are normally accepted when completed within 60 days from the date of the parcel delivered.
Defective ( Please provide a third party quality report of nonconforming products)
Return Freight charges must be prepaid; we will not accept COD shipments.
Warranty
All UTSOURCE purchases have a 60 days money back return policy, plus a 90 days UTSOURCE warranty against any manufacturing defects.This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by customer to follow instructions, product modification, negligent or improper operation.
HCPL4200
HCPL4200 has several brands around the world that may have alternate names for HCPL4200 due to regional differences or acquisition. HCPL4200 may also be known as the following names:
All sellers
1
Brand new
1
Certified preowned
1
Official
1
Third Party
1
Description

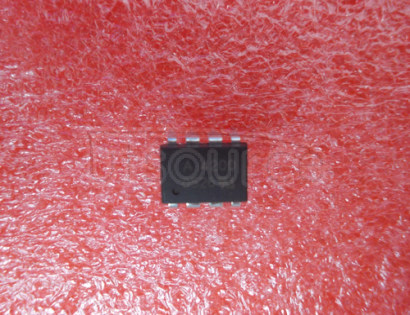

HCPL4200
Stock:9999 |
HP 02+ |
Optically Coupled 20 mA Current Loop Receiver |
≥1: US $1.23300 US $1.10970 ≥5: US $0.82200 US $0.73980 ≥10: US $0.73980 US $0.66582 ≥20: US $0.71925 US $0.64733 ≥50: US $0.69870 US $0.62883 ≥100: US $0.67815 US $0.61034 ≥200: US $0.65760 US $0.59184 ≥500: US $0.64938 US $0.58444 ≥1000: US $0.63705 US $0.57335
More:
Inquiry
|
Features
● Data Output Compatible with LSTTL, TTL and CMOS
● 20 K Baud Data Rate at 1400Metres Line Length
● Guaranteed Performance over Temperature (0℃ to 70℃)
● Guaranteed On and Off Thresholds
● LED is Protected from Excess Current
● Input Threshold Hysteresis
● Three-State Output Compatible with Data Buses
● Internal Shield for High Common Mode Rejection
● Safety Approval UL Recognized -2500Vrms,for 1 Minute CSA Approved
● Optically Coupled 20mA Current Loop Transmitter, HCPL-4100, Also Available
Applications
● Isolated 20mA Current
● Loop Receiver in: Computer Peripherals Industrial Control Equipment Data Communications
Description
The HCPL-4200 optocoupler is designed to operate as a receiver in equipment using the 20mA Current Loop. 20mA current loop systems conventionally signal a logic high state by transmitting 20mA of loop current (MARK), and signal a logic low state by allowing no more than a few milliamperes of loop current (SPACE). Optical coupling of the signal from the 20mA current loop to the logic output breaks ground loops and provides for a very high common mode rejection. The HCPL-4200 aids in the design process by providing guaranteed thresholds for logic high state and logic low state for the current loop, providing an LSTTL, TTL, or CMOS compatible logic interface, and providing guaranteed common mode rejection. The buffer circuit on the current loop side of the HCPL-4200 provides typically 0.8mA of hysteresis which increases the immunity to common mode and differential mode noise. The buffer also provides a controlled amount of LED drive current which takes into account any LED light output degradation. The internal shield allows a guaranteed 1000 V/μs common mode transient immunity
