LM12CLK
Category: IC Chips
Description: 80W Operational Amplifier
Price range ($)
0 36.88200
Order
- Users could add parts to cart and upload BOM when they searching parts, calculate cost in a second, offer you the best bill of materials.
- Some specific products need to reach the minimum order quantity.
- Users could get coupons randomly when they applied plus member. Utsource offers different buying options with different product quality from different seller stores when placing orders.
- Users could add products to“inquiry cart" and submit your inquiry, utsource will send quotation email to you.
- If you need add additional order instructions like Tax Invoice or Remark, please put them on the ordering information page.
- All order information could be checked in your "account center"page
- Please confirm the product description when placing order.
- The order can’t be canceled after shipment, so please email customer service to revise order details before shipment.
- Utsource Mobile browser version and APP could be downloaded to find parts anytime, anywhere if needed.
- Please choose right language and currency to place order if needed.
Payment
- UTSOURCE supports global payments, including mainstream US PAYPAL, credit cards (VISA, MASTERCARD, AMERICAN EXPRESS, JCB), WEST UNION, Moneygram;
- Popular payment in Europe: SofortBanking, Trustpay, Paysafecard;
- Middle East: CashU, Onecard;
- Southeast Asia : MOLPay;
- Russia commonly used: Qiwi, Yandex Money, WebMoney;
- The Dutch payment: iDEAL, Polish Dotpay,
- Brazilian payment: Boleto
- These above payments have a high market share in the local area with better payment experience, simpler payment method.
Shipping
- USPS, FedEx, DHL, and UPS could be selected.
- Express: (FEDEX, UPS, DHL, TNT)Free shipping on first 0.5kg for orders over 200$, Overweight will be charged separately.
- It is available for users to select "Freight Collect"depending on their requirement
- It may cost additional remote fees for delivery if you are in a remote area.
- Shipping price for your order will be calculated automatically in the shopping cart.If you have any questions about shipping costs, you can write to us and we will confirm it manually.
- For in-stock parts, orders normally could be shipped out within 1-2days.
- Delivery date: usually 2 to 5 working days.
- Shipping Tracking Number will be sent by email or you can go to APP or website "account center" to check once your order has been shipped.
- Invoice could be downloaded from "account center" > "my invoice" if needed
Gift Coupon/Plus service
- You could receive US $5 shipping coupon (applicable to new users)
- Offer 30-day PLUS free trial service( The plus service will be stopped automatically after the end of the trial, and no extra charge will be generated. Commodity prices are usually reduced by 10%)
- “Funds account” could be used for your next order purchase If you have money that has been returned to your “Funds account”. (You could check it in “My Account” > “Funds account” )
- Utsource offers professional customer service worldwide in USA, Mexico, Brazil, Italy, France, Germany and many other places.
Returning
Returns are normally accepted when completed within 60 days from the date of the parcel delivered.
Defective ( Please provide a third party quality report of nonconforming products)
Return Freight charges must be prepaid; we will not accept COD shipments.
Warranty
All UTSOURCE purchases have a 60 days money back return policy, plus a 90 days UTSOURCE warranty against any manufacturing defects.This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by customer to follow instructions, product modification, negligent or improper operation.
LM12CLK
LM12CLK has several brands around the world that may have alternate names for LM12CLK due to regional differences or acquisition. LM12CLK may also be known as the following names:
All sellers
2
Brand new
2
Certified preowned
2
Official
2
Third Party
2
Description
LM12CLK
Stock:9999 |
National Semiconductor |
80W Operational Amplifier |
≥1: US $36.88200 US $33.19380 ≥2: US $36.88200 US $33.19380 ≥5: US $35.65260 US $32.08734 ≥10: US $35.16084 US $31.64476 ≥20: US $34.91496 US $31.42346 ≥30: US $34.42320 US $30.98088 ≥50: US $34.42320 US $30.98088 ≥100: US $34.17732 US $30.75959 ≥500: US $33.93144 US $30.53830
More:
Inquiry
|
LM12CLK
Stock:37989 |
National Semiconductor 00+ |
80W Operational Amplifier |
|
Inquiry |
General Description
The LM12 is a power op amp capable of driving ±25V at ±10A while operating from±30V supplies. The monolithic IC can deliver 80W of sine wave power into a 4? load with0.01%distortion. Power bandwidth is 60 kHz Further, a peak dissipation capability of 800W allows it to handle reactive loads such as transducers, actuators or small motors without derating. Important features include:
● input protection
● controlled turn on
● thermal limiting
● overvoltage shutdown
● output-current limiting
● dynamic safe-area protection
The IC delivers±10A output current at any output voltage yet is completely protected against overloads, including shorts to the supplies. The dynamic safe-area protection is provided by instantaneous peak-temperature limiting within the power transistor array.The turn-on characteristics are controlled by keeping the output open-circuited until the total supply voltage reaches14V. The output is also opened as the case temperature exceeds 150℃ or as the supply voltage approaches the BVCEOof the output transistors. The IC withstands over voltages to 80V.
This monolithic op amp is compensated for unity-gain feedback, with a small-signal bandwidth of 700 kHz. Slew rate is 9V/μs, even as a follower. Distortion and capacitive-load stability rival that of the best designs using complementary output transistors. Further, the IC withstands large differential input voltages and is well behaved should the common-mode range be exceeded.
The LM12 establishes that monolithic ICs can deliver considerable output power without resorting to complex switching schemes. Devices can be paralleled or bridged for even greater output capability. Applications include operational power supplies, high-voltage regulators, high-quality audio amplifiers, tape-head positioners, x-y plotters or other servo-control systems.

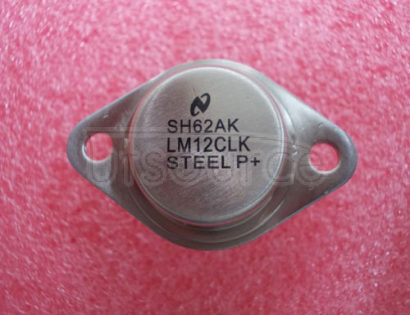

The LM12 is supplied in a four-lead, TO-3 package with V-on the case. A gold-eutectic die-attach to a molybdenum interface is used to avoid thermal fatigue problems. The LM12 is specified for either military or commercial temperature range.
