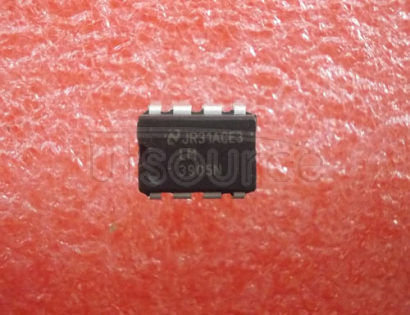

LM3905N
Category: IC Chips
Description: Precision Timers
Price range ($)
0.39341 1.56464
Order
- Users could add parts to cart and upload BOM when they searching parts, calculate cost in a second, offer you the best bill of materials.
- Some specific products need to reach the minimum order quantity.
- Users could get coupons randomly when they applied plus member. Utsource offers different buying options with different product quality from different seller stores when placing orders.
- Users could add products to“inquiry cart" and submit your inquiry, utsource will send quotation email to you.
- If you need add additional order instructions like Tax Invoice or Remark, please put them on the ordering information page.
- All order information could be checked in your "account center"page
- Please confirm the product description when placing order.
- The order can’t be canceled after shipment, so please email customer service to revise order details before shipment.
- Utsource Mobile browser version and APP could be downloaded to find parts anytime, anywhere if needed.
- Please choose right language and currency to place order if needed.
Payment
- UTSOURCE supports global payments, including mainstream US PAYPAL, credit cards (VISA, MASTERCARD, AMERICAN EXPRESS, JCB), WEST UNION, Moneygram;
- Popular payment in Europe: SofortBanking, Trustpay, Paysafecard;
- Middle East: CashU, Onecard;
- Southeast Asia : MOLPay;
- Russia commonly used: Qiwi, Yandex Money, WebMoney;
- The Dutch payment: iDEAL, Polish Dotpay,
- Brazilian payment: Boleto
- These above payments have a high market share in the local area with better payment experience, simpler payment method.
Shipping
- USPS, FedEx, DHL, and UPS could be selected.
- Express: (FEDEX, UPS, DHL, TNT)Free shipping on first 0.5kg for orders over 200$, Overweight will be charged separately.
- It is available for users to select "Freight Collect"depending on their requirement
- It may cost additional remote fees for delivery if you are in a remote area.
- Shipping price for your order will be calculated automatically in the shopping cart.If you have any questions about shipping costs, you can write to us and we will confirm it manually.
- For in-stock parts, orders normally could be shipped out within 1-2days.
- Delivery date: usually 2 to 5 working days.
- Shipping Tracking Number will be sent by email or you can go to APP or website "account center" to check once your order has been shipped.
- Invoice could be downloaded from "account center" > "my invoice" if needed
Gift Coupon/Plus service
- You could receive US $5 shipping coupon (applicable to new users)
- Offer 30-day PLUS free trial service( The plus service will be stopped automatically after the end of the trial, and no extra charge will be generated. Commodity prices are usually reduced by 10%)
- “Funds account” could be used for your next order purchase If you have money that has been returned to your “Funds account”. (You could check it in “My Account” > “Funds account” )
- Utsource offers professional customer service worldwide in USA, Mexico, Brazil, Italy, France, Germany and many other places.
Returning
Returns are normally accepted when completed within 60 days from the date of the parcel delivered.
Defective ( Please provide a third party quality report of nonconforming products)
Return Freight charges must be prepaid; we will not accept COD shipments.
Warranty
All UTSOURCE purchases have a 60 days money back return policy, plus a 90 days UTSOURCE warranty against any manufacturing defects.This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by customer to follow instructions, product modification, negligent or improper operation.
LM3905N
LM3905N has several brands around the world that may have alternate names for LM3905N due to regional differences or acquisition. LM3905N may also be known as the following names:
All sellers
3
Brand new
3
Certified preowned
3
Official
3
Third Party
3
Description
LM3905N
Stock:9999 |
National Semiconductor N/A |
Precision Timers |
≥1: US $0.98352 US $0.88517 ≥5: US $0.73764 US $0.66388 ≥10: US $0.51635 US $0.46471 ≥20: US $0.49176 US $0.44258 ≥50: US $0.44258 US $0.39832 ≥100: US $0.43029 US $0.38726 ≥200: US $0.41800 US $0.37620 ≥500: US $0.40570 US $0.36513 ≥1000: US $0.39341 US $0.35407
More:
Inquiry
|
LM3905N
Stock:210 |
00+ |
Precision Timers |
≥1: US $1.38303 US $1.24473
More:
Inquiry
|
LM3905N
Stock:5 |
National Semiconductor |
Precision Timers |
≥1: US $1.56464 US $1.40818
More:
Inquiry
|
General description
The LM122 series are precision timers that offer great versatility with high accuracy.They operate with unregulated supplies from 4.5V to 40V while maintaining constant timing periods from microseconds to hours. Internal logic and regulator circuits complement the basic timing function enabling the LM122 series to operate in many different applications with a minimum of external components.
The output of the timer is a floating transistor with built in current limiting. It can drive either ground referred or supply referred loads up to 40V and 50mA.The floating nature of this output makes it ideal for interfacing,lamp or relay driving, and signal conditioning where an open collector or emitter is required.A "logic reverse" circuit can be programmed by the user to make the output transistor either “on" or "off” during the timing period.
The trigger input to the LM122 series has a threshold of1.6V independent of supply voltage, but it is fully protected against inputs as high as ±40V-even when using a 5V supply. The circuitry reacts only to the rising edge of the trigger signal,and is immune to any trigger voltage during the timing periods.
An internal 3.15V regulator is included in the timer to reject supply voltage changes and to provide the user with a convenient reference for applications other than a basic timer.External loads up to 5mA can be driven by the regulator. An internal 2V divider between the reference and ground sets the timing period to 1 RC.The timing period can be voltage controlled by driving this divider with an external source through the VADJ pin. Timing ratios of 50:1 can be easily achieved.
The comparator used in the LM122 utilizes high gain PNP input transistors to achieve 300pA typical input bias current over a common mode range of 0V to 3V. A boost terminal allows the user to increase comparator operating current for timing periods less than 1 ms.This lets the timer operate over a 3μs to multi-hour timing range with excellent repeatability.
The LM122 operates over a temperature range of -55℃ to +125℃. An electrically identical LM322 is specified from 0℃ to + 70℃.The LM3905 is identical to the LM122 series except that the boost and VADJ pin options are not available,limiting minimum timing period to 1 ms.
Features
● Immune to changes in trigger voltage during timing interval
● Timing periods from microseconds to hours
● Internal logic reversal
● Immune to power supply ripple during the timing interval
● Operates from 4.5V to 40V supplies
● Input protected to ±40V
● Floating transistor output with internal current limiting
● Internal regulated reference
● Timing period can be voltage controlled
● TTL compatible input and output
