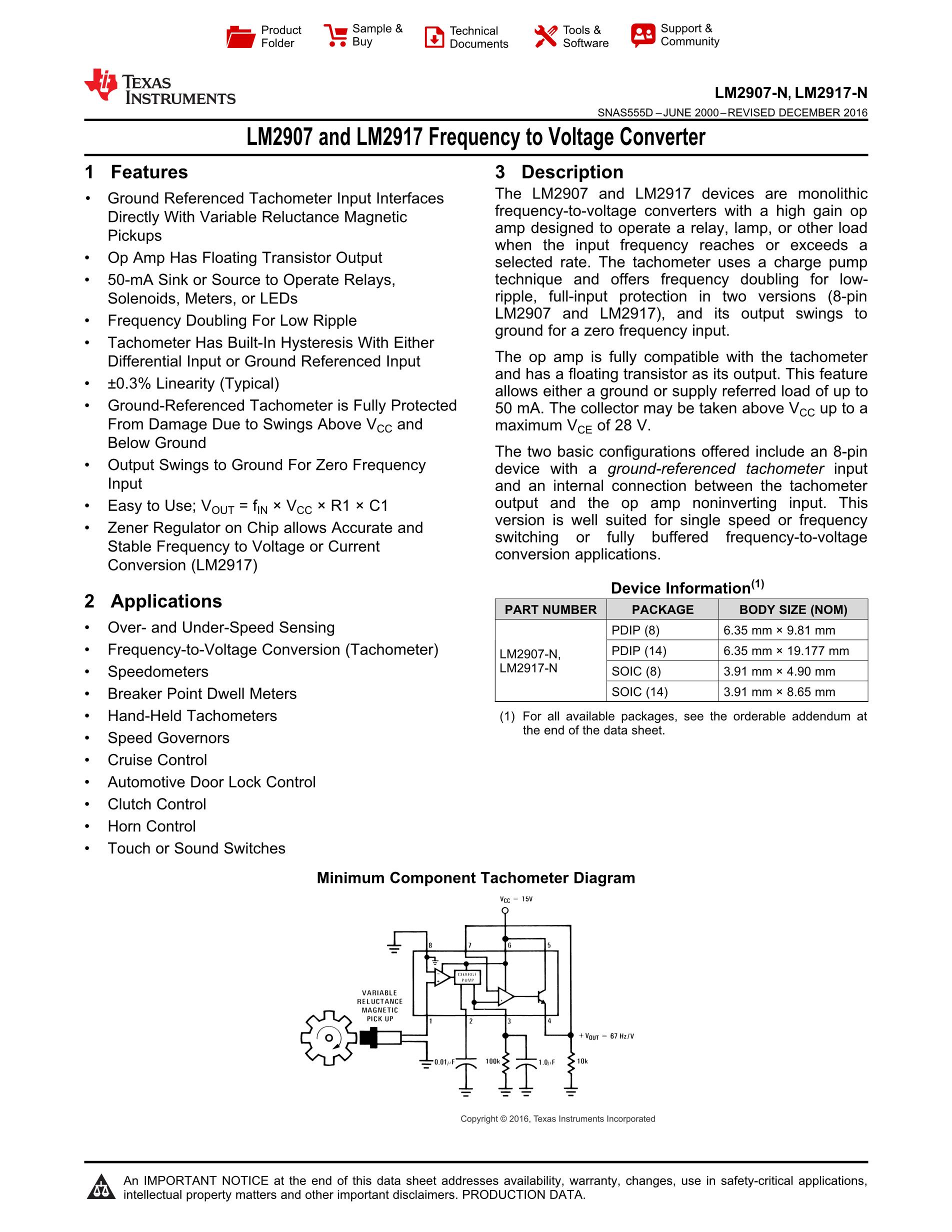

LM2907/LM2917 Frequency to Voltage Converter
이 사이트에 사용 된 모든 제품 이름, 상표, 브랜드 및 로고는 해당 소유자의 재산입니다. 이러한 이름, 상표, 브랜드 및 로고가있는 제품의 묘사, 설명 또는 판매는 식별 목적으로 만 사용되며 권리 보유자와의 관계 또는 승인을 나타 내기위한 것이 아닙니다.
이 제품의 파라미터 및 성능 지표는 인터넷에서 가져온 것입니다. 오차가 있을 경우 제조업체의 기술 사양을 참조하십시오.！
General Description
The LM2907,LM2917 series are monolithic frequency to voltage converters with a high gain op amp/comparator designed to operate a relay, lamp, or other load when the input frequency reaches or exceeds a selected rate. The tachometer uses a charge pump technique and offers frequency doubling for low ripple, full input protection in two versions (LM2907-8, LM2917-8) and its output swings to ground for a zero frequency input.
The op amp/comparator is fully compatible with the tachometer and has a floating transistor as its output. This feature allows either a ground or supply referred load of up to 50 mA The collector may be taken above VCC up to a maximum VCE of 28V.
The two basic configurations offered include an 8-pin device with a ground referenced tachometer input and an internal connection between the tachometer output and the op amp non-inverting input. This version is well suited for single speed or frequency switching or fully buffered frequency to voltage conversion applications.
The more versatile configurations provide differential tachometer input and uncommitted op amp inputs. With this version the tachometer input may be floated and the op amp becomes suitable for active filter conditioning of the tachometer output.
Both of these configurations are available with an active shunt regulator connected across the power leads. The regulator clamps the supply such that stable frequency to voltage and frequency to current operations are possible with any supply voltage and a suitable resistor.
Features
● Ground referenced tachometer input interfaces directly with variable reluctance magnetic pickups
● Op amp/comparator has floating transistor output
● 50 mA sink or source to operate relays, solenoids, meters, or LEDs
● Frequency doubling for low ripple
● Tachometer has built-in hysteresis with either differential input or ground referenced input
● Built-in zener on LM2917
● ±0.3% linearity typical
● Ground referenced tachometer is fully protected from damage due to swings above VCC and below ground
Applications
● Over/under speed sensing
● Frequency to voltage conversion (tachometer
● Speedometers
● Breaker point dwell meters
● Hand-held tachometer
● Speed governors
● Cruise control
● Automotive door lock control
● Clutch control
● Horn control
● Touch or sound switches

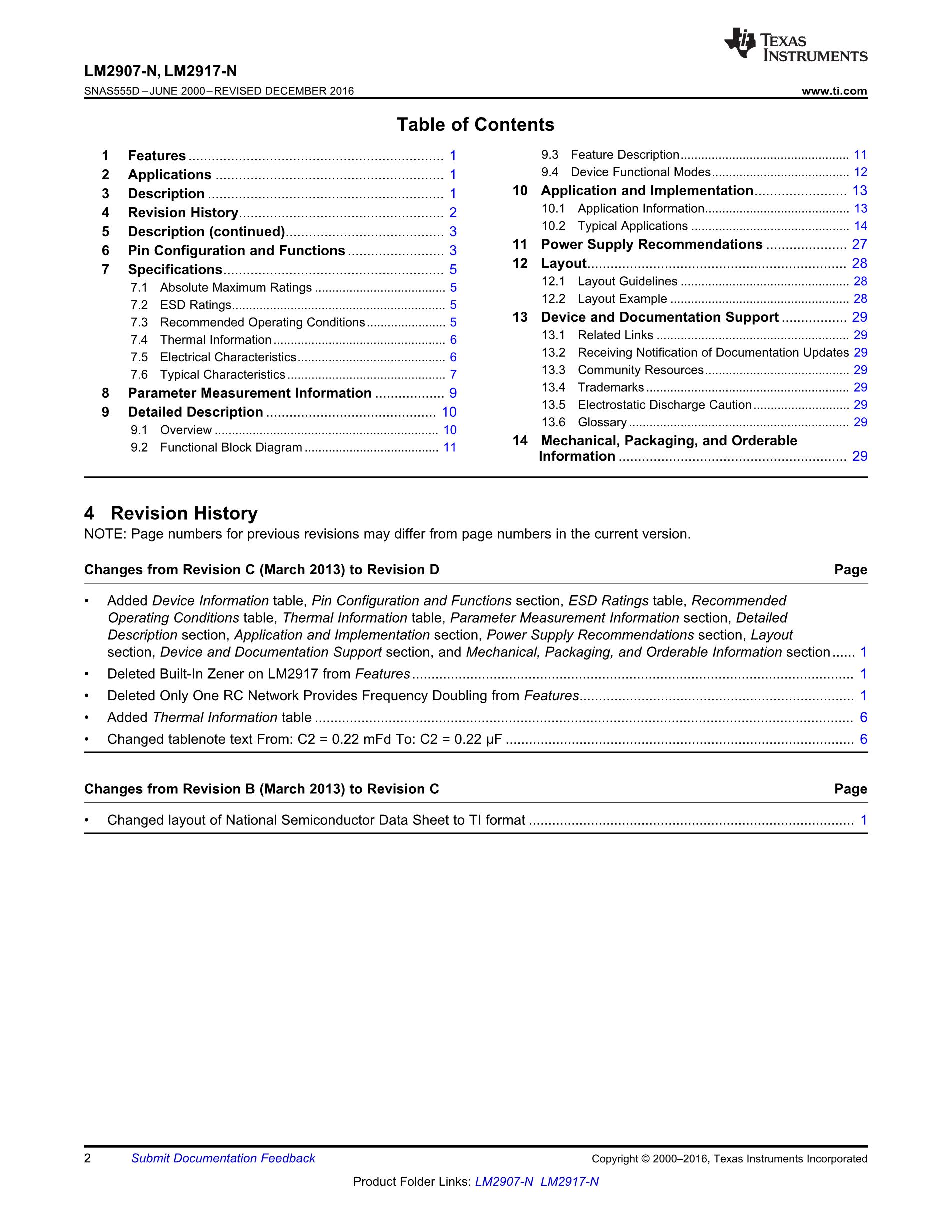

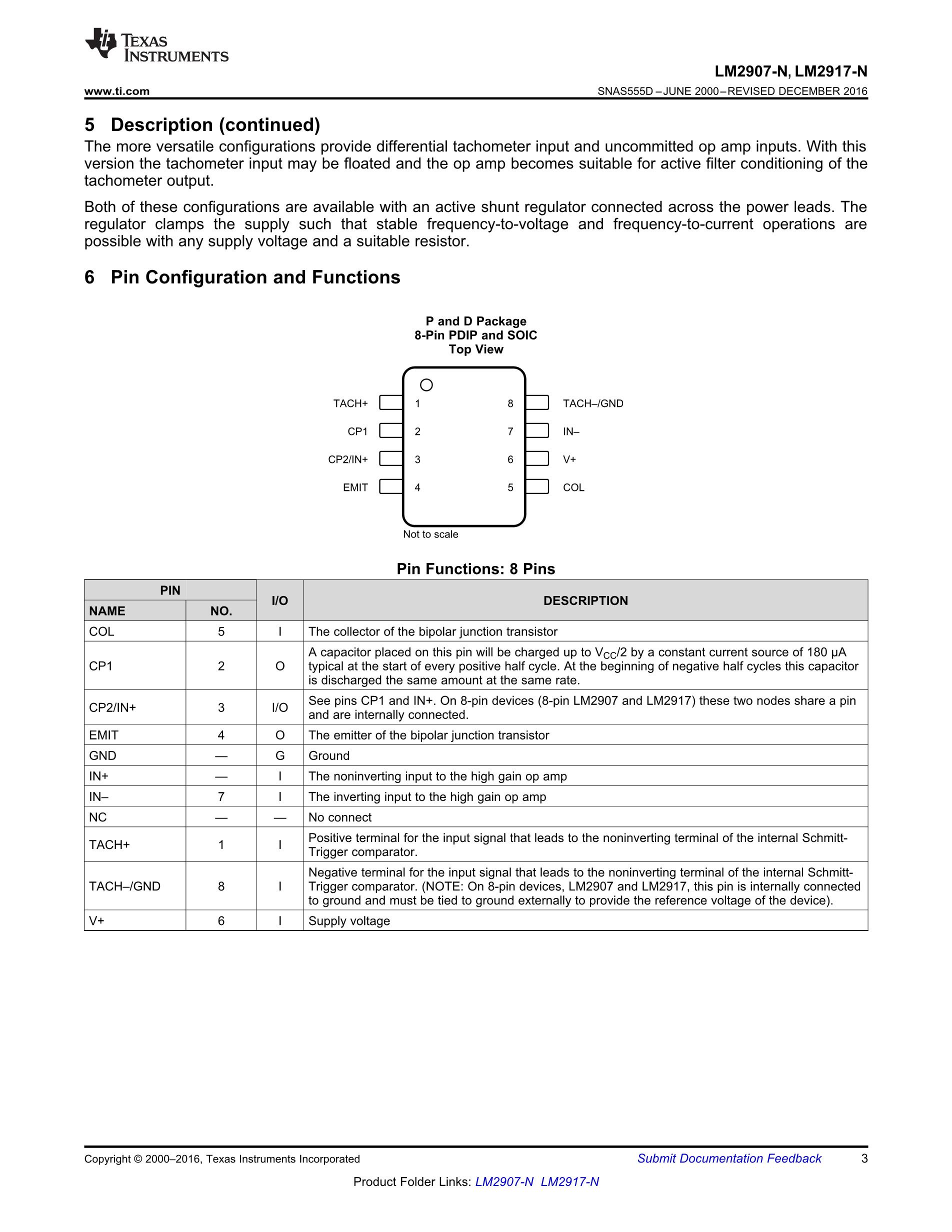

데이터 시트의 처음 3페이지 미리보기
