Utsource certified used parts
Utsource certified used parts provide the following guarantees:
1. Utsource will inspect the goods, including appearance inspection (no serious damage to the appearance), select qualified and honest suppliers, and ensure 98% qualification rate.
2. Some parts are tested by machine.
3. Utsource certified parts can be returned and refunded unconditionally within 60 days.
All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
The parameters and performance indicators of this product are sourced from the internet. In case of discrepancies, please refer to the manufacturer's technical specifications!！
Features
● Glass Passivated Die Construction
● High Case Dielectric Strength of 1500VRMS
● Low Reverse Leakage Current
● Surge Overload Rating to 350A Peak
● Ideal for Printed Circuit Board Applications
● Plastic Material - UL Flammability Classification 94V-0
● Lead Free Finish/RoHS Complian
Mechanical Data
● Case: Molded Plastic
● Terminals: Plated Leads, Solderable per MIL-STD-202, Method 208
● Polarity: Molded on Body
● Mounting: Through Hole for #6 Screw
● Mounting Torque: 5.0 in-lbs Maximum
● Weight: 6.6 grams (approx)
● Marking: Type Number
Maximum Ratings and Electrical Characteristics@ TA = 25℃ unless otherwise specified
Single phase, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
| QUANTITY | UNIT PRICE | PLUS UNIT PRICE | TOTAL PRICE |
|---|---|---|---|
| ≥1: | US $0.97370 | US $0.91528 | US $0.91528 |
Substitute (equivalent) Product
| Substitute Product | Brief Description |
|---|---|
| D25XB80 | 25A, 800V bridge rectifier, similar to D25XB60 but with higher voltage rating. |
| KBPC3510 | 35A, 1000V bridge rectifier, higher current and voltage rating. |
| GBPC2506 | 25A, 600V bridge rectifier, similar to D25XB60. |
| G25T60 | 25A, 600V bridge rectifier, equivalent to D25XB60. |
| MB25S60 | 25A, 600V bridge rectifier in a similar package as D25XB60. |
| RS402L | 4A, 200V bridge rectifier, lower current and voltage rating. |
Product Usage

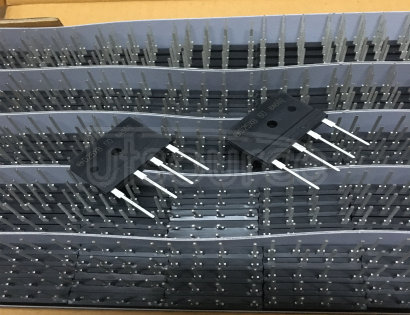

The D25XB60 is a bridge rectifier, a type of diode-based electronic component used to convert alternating current (AC) to direct current (DC). Given its specifications, such as a reverse voltage rating of 600V and a forward current rating of 25A, it is commonly used in various power electronics and rectification applications. Here are some circuits and applications where a D25XB60 bridge rectifier might be used:
Power Supply Units (PSUs):
Battery Chargers:
Motor Controllers:
Inverters:
HVAC Systems:
Uninterruptible Power Supplies (UPS):
Welding Equipment:
Audio Amplifiers:
Home Appliances:
Renewable Energy Systems:
When implementing the D25XB60 in a circuit, it's crucial to ensure adequate heat dissipation through heat sinks or other cooling methods, given the relatively high currents it may handle. Proper consideration of the voltage ratings and ensuring that the surrounding components are rated appropriately is also essential for safe and efficient circuit design.
Global Logistics Country List
| Flag | Country | Estimated Delivery Time | Minimum First Weight Cost | ||
|---|---|---|---|---|---|
| Express | Standard Shipping | Express (0.5kg) | Standard Shipping (0.05kg) | ||
ExpandOrder
Payment
Shipping
Gift Coupon/Plus service
Returning
Returns are normally accepted when completed within 90 days from the date of the parcel delivered.
Defective ( Please provide a third party quality report of nonconforming products)
Return Freight charges must be prepaid; we will not accept COD shipments.
Warranty
All UTSOURCE purchases have a 90 days money back return policy, plus a 100 days UTSOURCE warranty against any manufacturing defects.This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by customer to follow instructions, product modification, negligent or improper operation.
D25XB60
D25XB60 has several brands around the world that may have alternate names for D25XB60 due to regional differences or acquisition. D25XB60 may also be known as the following names:
