3V LVDS Quad CMOS Differential Line Driver
All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
The parameters and performance indicators of this product are sourced from the internet. In case of discrepancies, please refer to the manufacturer's technical specifications!！
| Parameter | Symbol | Min | Typ | Max | Unit | Description |
|---|---|---|---|---|---|---|
| Supply Voltage | VCC | 2.7 | 5.5 | V | Operating supply voltage range | |
| Differential Input Voltage | VIN | -0.3 | 0.3 | V | Maximum differential input voltage | |
| Output High Voltage | VOH | 2.4 | 5.0 | V | Minimum output high voltage at IOH = 4mA | |
| Output Low Voltage | VOL | 0 | 0.4 | V | Maximum output low voltage at IOL = 8mA | |
| Propagation Delay | tpd | 1.9 | ns | Propagation delay time | ||
| Skew | tskew | 0.4 | ns | Channel-to-channel skew | ||
| Power-down Current | IDD | 1 | 5 | μA | Quiescent supply current in power-down mode | |
| Operating Temperature | Toper | -40 | 85 | °C | Operating temperature range | |
| Storage Temperature | Tstg | -65 | 150 | °C | Storage temperature range |
Power Supply Connection: Connect the VCC pin to a stable power supply within the specified range (2.7V to 5.5V). Ensure proper decoupling capacitors are placed close to the VCC pin to minimize noise and transients.
Signal Integrity: To maintain signal integrity, use controlled impedance traces for differential pairs and ensure lengths are matched as closely as possible to reduce skew.
Power Down Mode: To enter power-down mode, set the appropriate control line to the specified level. This reduces power consumption significantly but disables data transmission.
Temperature Considerations: The device is designed to operate within an ambient temperature range of -40°C to 85°C. Ensure adequate heat dissipation if operating near the upper limit.
Input Protection: Be cautious not to exceed the maximum differential input voltage (-0.3V to 0.3V) to prevent damage to the device.
Propagation Delay and Skew: For timing-critical applications, account for the propagation delay and channel-to-channel skew in your design to ensure reliable data transmission.
Storage Conditions: When storing the device, keep it within the storage temperature range (-65°C to 150°C) to avoid degradation of performance or reliability.
Handling Precautions: Handle with care to avoid electrostatic discharge (ESD), which can damage sensitive components. Use proper ESD protection practices during handling and installation.

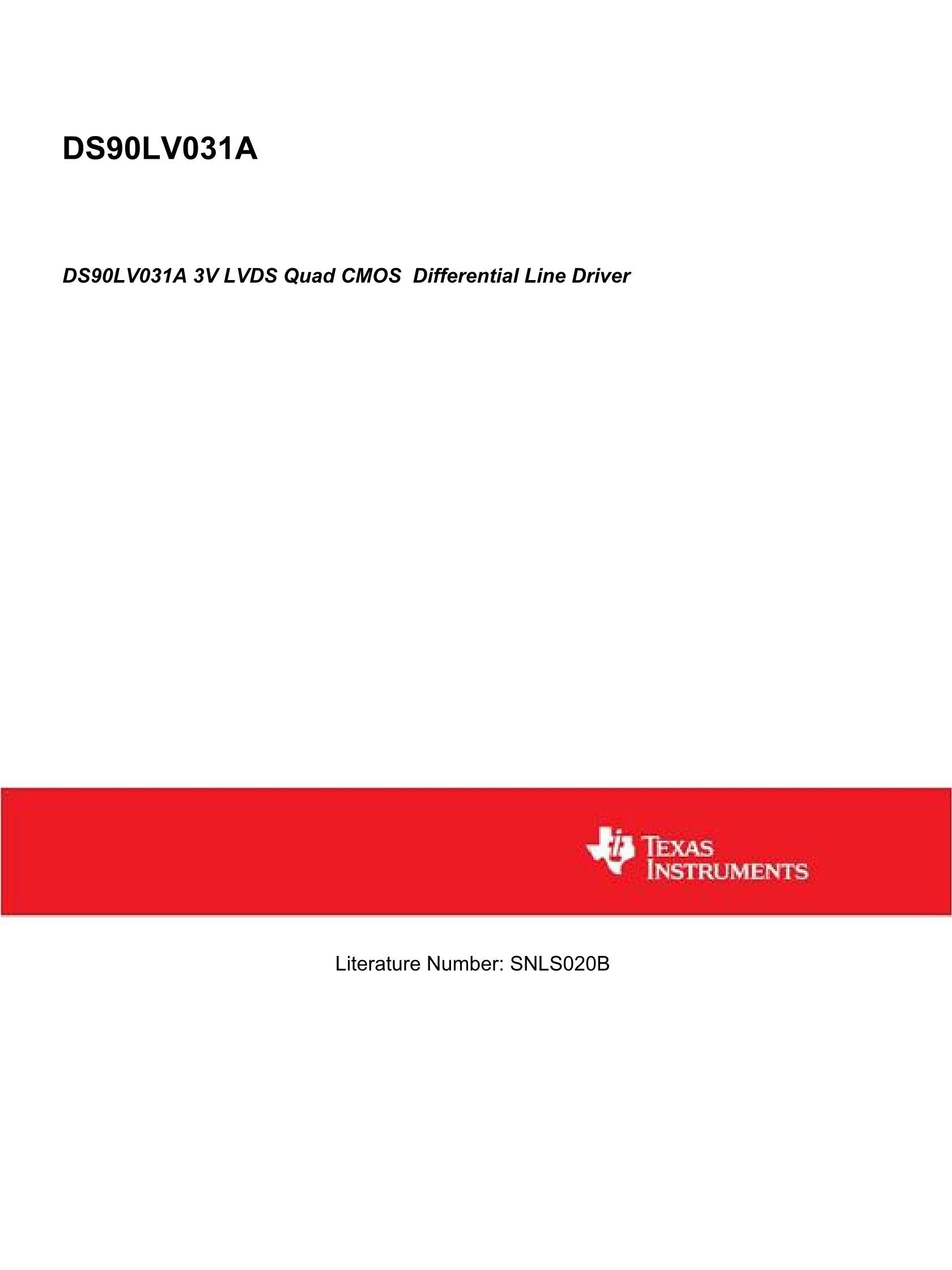

Preview of the first 3 pages of the data sheet
