Description

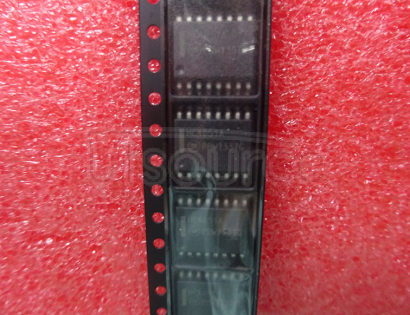

Analog Switch/Analog Multiplexer Single 8:1 Automotive 16-Pin SOIC W Tube
All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
The parameters and performance indicators of this product are sourced from the internet. In case of discrepancies, please refer to the manufacturer's technical specifications!！
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Supply Voltage | VCC | 2.0 | - | 6.0 | V |
| Input/Output Voltage | VI/O | 0.0 | - | VCC | V |
| Channel-to-Channel Leakage Current | ICL | - | - | 1.0 | μA |
| On-State Resistance | RON | 4.0 | 8.0 | 12.0 | Ω |
| Off-State Leakage Current | IOFF | - | - | 1.0 | nA |
| Control Input Current | IIN | - | - | 1.0 | μA |
| Operating Temperature Range | TA | -40 | - | 85 | °C |
| Storage Temperature Range | TSTG | -65 | - | 150 | °C |
| Maximum Junction Temperature | TJ | - | - | 150 | °C |
Power Supply:
Signal Routing:
Control Inputs:
Channel Selection:
On-State Resistance:
Off-State Leakage:
Temperature Considerations:
Handling:
Preview of the first 3 pages of the data sheet
| QUANTITY | UNIT PRICE | PLUS UNIT PRICE | TOTAL PRICE |
|---|---|---|---|
| ≥1: | US $9.30600 | US $8.37540 | US $8.37540 |
| ≥5: | US $8.84070 | US $7.95663 | US $39.78315 |
| ≥10: | US $8.37540 | US $7.53786 | US $75.37860 |
| ≥20: | US $8.14275 | US $7.32848 | US $146.56960 |
| ≥50: | US $7.91010 | US $7.11909 | US $355.95450 |
| ≥100: | US $7.67745 | US $6.90970 | US $690.97000 |
| ≥200: | US $7.44480 | US $6.70032 | US $1340.06400 |
| ≥500: | US $7.35174 | US $6.61657 | US $3308.28500 |
| ≥1000: | US $7.21215 | US $6.49093 | US $6490.93000 |
Substitute (equivalent) Product
| Product Name | Description |
|---|---|
| MC74VHC4051DG | 8-Channel Analog Multiplexer/Demultiplexer, 2.0V to 6.0V Operation, DIP-16 Package |
| CD74HC4051E | 8-Channel Analog Multiplexer/Demultiplexer, 2.0V to 6.0V Operation, SOIC-16 Package |
| TC74HC4051AP | 8-Channel Analog Multiplexer/Demultiplexer, 2.0V to 6.0V Operation, PDIP-16 Package |
| DM74HC4051N | 8-Channel Analog Multiplexer/Demultiplexer, 2.0V to 6.0V Operation, DIP-16 Package |
| MM74HC4051N | 8-Channel Analog Multiplexer/Demultiplexer, 2.0V to 6.0V Operation, DIP-16 Package |
Product Usage
The MC74HC4051ADWG is a monolithic CMOS analog multiplexer/demultiplexer that can be used in a variety of circuits where signal routing or switching is required. Here are some common applications and circuits that might use this component:
Signal Routing in Test Equipment:
Data Acquisition Systems:
Audio Mixing and Routing:
Sensor Networks:
Communication Systems:
Educational and Development Boards:
Medical Devices:
Automotive Applications:
Power Management:
Research and Development:
The MC74HC4051ADWG is particularly useful in any application where you need to select one of several input signals to pass through to a single output, or vice versa, with minimal signal distortion and low on-resistance.
