Power Factor Correction PFC and PWM Controller Combo
No of Pins: 8
Container: Rail
All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
The parameters and performance indicators of this product are sourced from the internet. In case of discrepancies, please refer to the manufacturer's technical specifications!！
Features

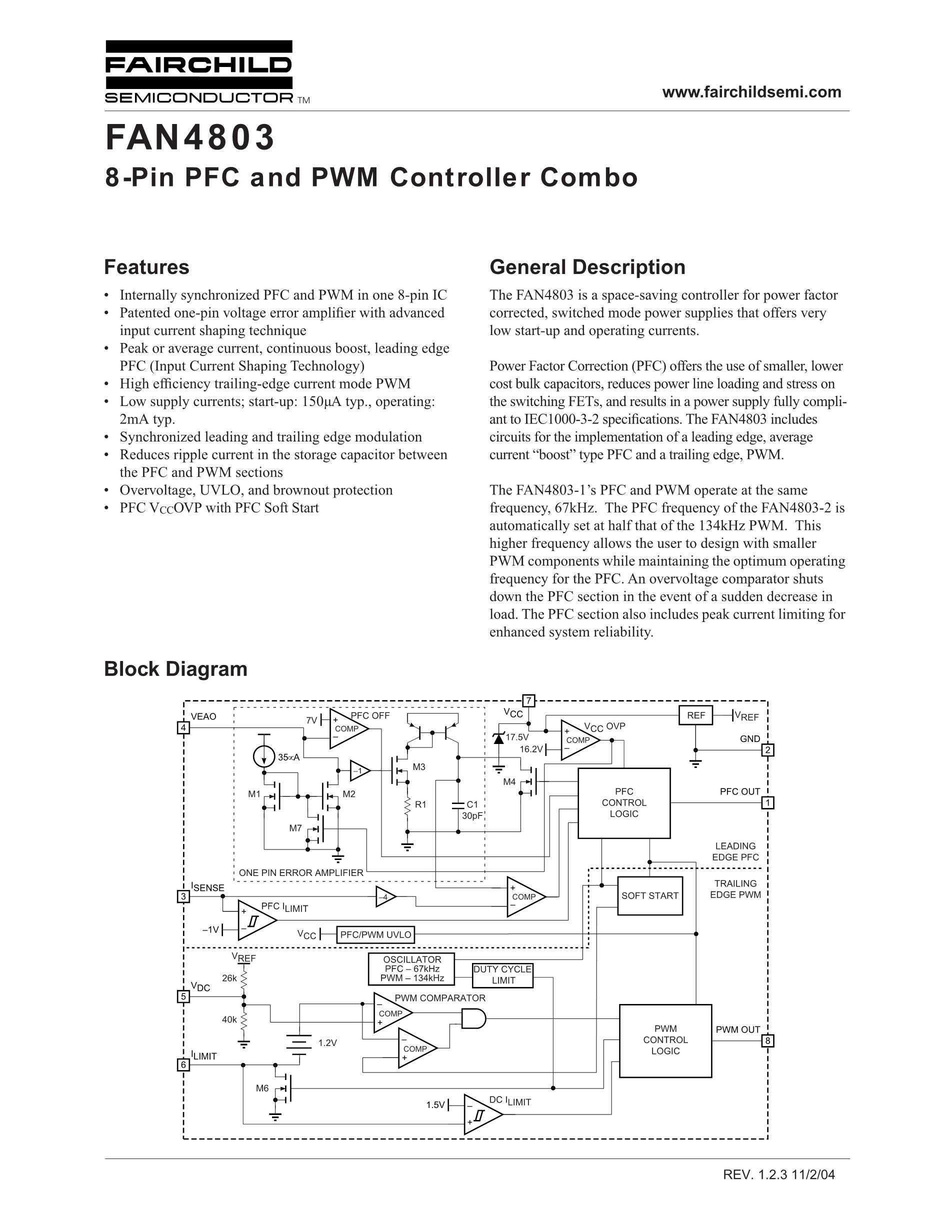

● Internally synchronized PFC and PWM in one 8-pin IC
● Patented one-pin voltage error amplifier with advanced input current shaping technique
● Peak or average current,continuous boost,leading edge PFC (Input Current Shaping Technology)
● High efficiency trailing-edge current mode PWM
● Low supply currents; start-up: 150uA typ., operating: 2mA typ.
● Synchronized leading and trailing edge modulation
● Reduces ripple current in the storage capacitor between the PFC and PWM sections
● Over voltage, UVLO, and brownout protection
● PFC VCC OVP with PFC Soft Start
General Description
The FAN4803 is a space-saving controller for power factor corrected, switched mode power supplies that offers very low start-up and operating currents.
Power Factor Correction (PFC) offers the use of smaller, lower cost bulk capacitors, reduces power line loading and stress on the switching FETs, and results in a power supply fully compliant to IEC1000-3-2 specifications.The FAN4803 includes circuits for the implementation of a leading edge, average current “boost” type PFC and a trailing edge, PWM.
The FAN4803-1 's PFC and PWM operate at the same frequency, 67kHz. The PFC frequency of the FAN4803-2 is automatically set at half that of the 134kHz PWM. This higher frequency allows the user to design with smaller PWM components while maintaining the optimum operating frequency for the PFC.An over voltage comparator shuts down the PFC section in the event of a sudden decrease in load.The PFC section also includes peak current limiting for enhanced system reliability.
Preview of the first 3 pages of the data sheet
