Description

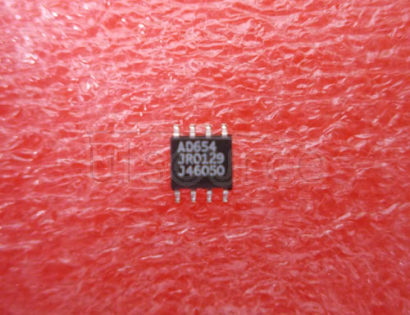

Low Cost Monolithic Voltage-to-Frequency Converter
All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
The parameters and performance indicators of this product are sourced from the internet. In case of discrepancies, please refer to the manufacturer's technical specifications!！
FEATURES
Low Cost
Single or Dual Supply,5 V to 36 V,±5 V to ±18 V
Full-Scale Frequency Up to 500 kHz
Minimum Number of External Components Needed
Versatile Input Amplifier
Positive or Negative Voltage Modes
Negative Current Mode
High lnput Impedance,Low Drift
Low Power: 2.0 mA Quiescent Current
Low Offset: 1 mV
PRODUCT DESCRIPTION
The AD654 is a monolithic V/F converter consisting of an input amplifier, a precision oscillator system, and a high current output stage.A single RC network is all that is required to set up any full scale (FS) frequency up to 500 kHz and any FS input voltage up to ±30 V.Linearity error is only 0.03% for a 250 kHz FS, and operation is guaranteed over an 80 dB dynamic range. The overall temperature coefficient (excluding the effects of external components) is typically ±50 ppm/℃. The AD654 operates from a single supply of 5 V to 36 V and consumes only 2.0 mA quiescent current.
The low drift (4μV/℃ typ) input amplifier allows operationdirectly from small signals such as thermocouples or strain gaugeswhile offering a high (250 MΩ) input resistance.Unlike most V/F converters, the AD654 provides a square-wave output, and can drive up to 12 TTL 1oads, optocouplers, long cables, or similar loads.
PRODUCT HIGHLIGHTS
1. Packaged in both an 8-lead mini-DIP and an 8-lead SOIC package, the AD654 is a complete V/F converter requiring only an RC timing network to set the desired full-scale frequency and a selectable pull-up resistor for the open-collector output stage. Any full scale input voltage range from 100 mV to 10 volts (or greater, depending on +Vs) can be accommodated by proper selection of the timing resistor.The full-scale frequency is then set by the timing capacitor from the simple relationship, f = V/10 RC.
2. A minimum number of low cost external components are necessary.A single RC network is all that is required to set up any full scale frequency up to 500 kHz and any full-scale input voltage up to±30 V.
3. Plastic packaging allows low cost implementation of the standard VFC applications: A/D conversion, isolated signal transmission, F/V conversion, phase-locked loops, and tuning switched-capacitor filters.
4.Power supply requirements are minimal; only 2.0 mA of quiescent current is drawn from the single positive supply from 4.5 volts to 36 volts. In this mode, positive inputs can vary from 0 volts (ground) to (+VS -4) volts. Negative inputscan easily be connected for below ground operation.
5.The versatile open-collector output stage can sink more than 10 mA with a saturation voltage less than 0.4 volts. The Logic Common terminal can be connected to any level between ground (or -VS) and 4 volts below +Vs.This allows easy direct interface to any logic family with either positive or negative logic levels.
Preview of the first 3 pages of the data sheet
| QUANTITY | UNIT PRICE | PLUS UNIT PRICE | TOTAL PRICE |
|---|---|---|---|
| ≥1: | US $3.76464 | US $3.38818 | US $3.38818 |
| ≥5: | US $3.57641 | US $3.21877 | US $16.09385 |
| ≥10: | US $3.38818 | US $3.04936 | US $30.49360 |
| ≥20: | US $3.29406 | US $2.96465 | US $59.29300 |
| ≥50: | US $3.19994 | US $2.87995 | US $143.99750 |
| ≥100: | US $3.10583 | US $2.79525 | US $279.52500 |
| ≥200: | US $3.01171 | US $2.71054 | US $542.10800 |
| ≥500: | US $2.97407 | US $2.67666 | US $1338.33000 |
| ≥1000: | US $2.91760 | US $2.62584 | US $2625.84000 |
Substitute (equivalent) Product
| Product Name | Description |
|---|---|
| LM331 | Precision Voltage-to-Frequency Converter with wide supply range and low power consumption. |
| ICL8069 | Low Power, Precision Voltage-to-Frequency Converter with excellent linearity. |
| MAX1044 | High-Accuracy, Low-Power Voltage-to-Frequency Converter with temperature compensation. |
| TLV231 | Low-Voltage, Low-Power Voltage-to-Frequency Converter suitable for battery-powered applications. |
Product Usage
The AD654JR is a voltage-to-frequency converter (VFC) integrated circuit manufactured by Analog Devices. It is widely used in various applications due to its high accuracy, stability, and wide input range. Here are some common circuits and applications where the AD654JR is used:
Data Acquisition Systems:
Process Control Systems:
Sensor Interfaces:
Signal Conditioning:
Frequency Modulation (FM) Circuits:
Pulse Width Modulation (PWM) Generation:
Analog-to-Digital Conversion:
Educational and Research Applications:
Here is a basic example of how the AD654JR can be used in a voltage-to-frequency converter circuit:
Required+Vcc (5V)
|
R1 (10kΩ)
|
C1 (0.1μF)
|
GND
Input Voltage (Vin) ---|---+---|--- Output Frequency (f_out)
| |
R2 R3 (10kΩ)
| |
GND +Vcc
In this circuit, the input voltage (Vin) is converted to a frequency (f_out) that is proportional to the input voltage. The values of R1, C1, R2, and R3 are chosen based on the desired frequency range and input voltage range.
The AD654JR is a versatile IC that finds applications in a wide range of circuits and systems where accurate and reliable voltage-to-frequency conversion is needed. Its simplicity and robust performance make it a popular choice in both industrial and educational settings.
