Description
PWM FF + PFC CCM combi IC
Package: PG-DIP-20
Applications: Off-Line SMPS
Output: PWM+PFC Gate Driver
VCC min: 11.0 V
VCC max: 19.0 V
ICC max: 50.0 mA
All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
The parameters and performance indicators of this product are sourced from the internet. In case of discrepancies, please refer to the manufacturer's technical specifications!！

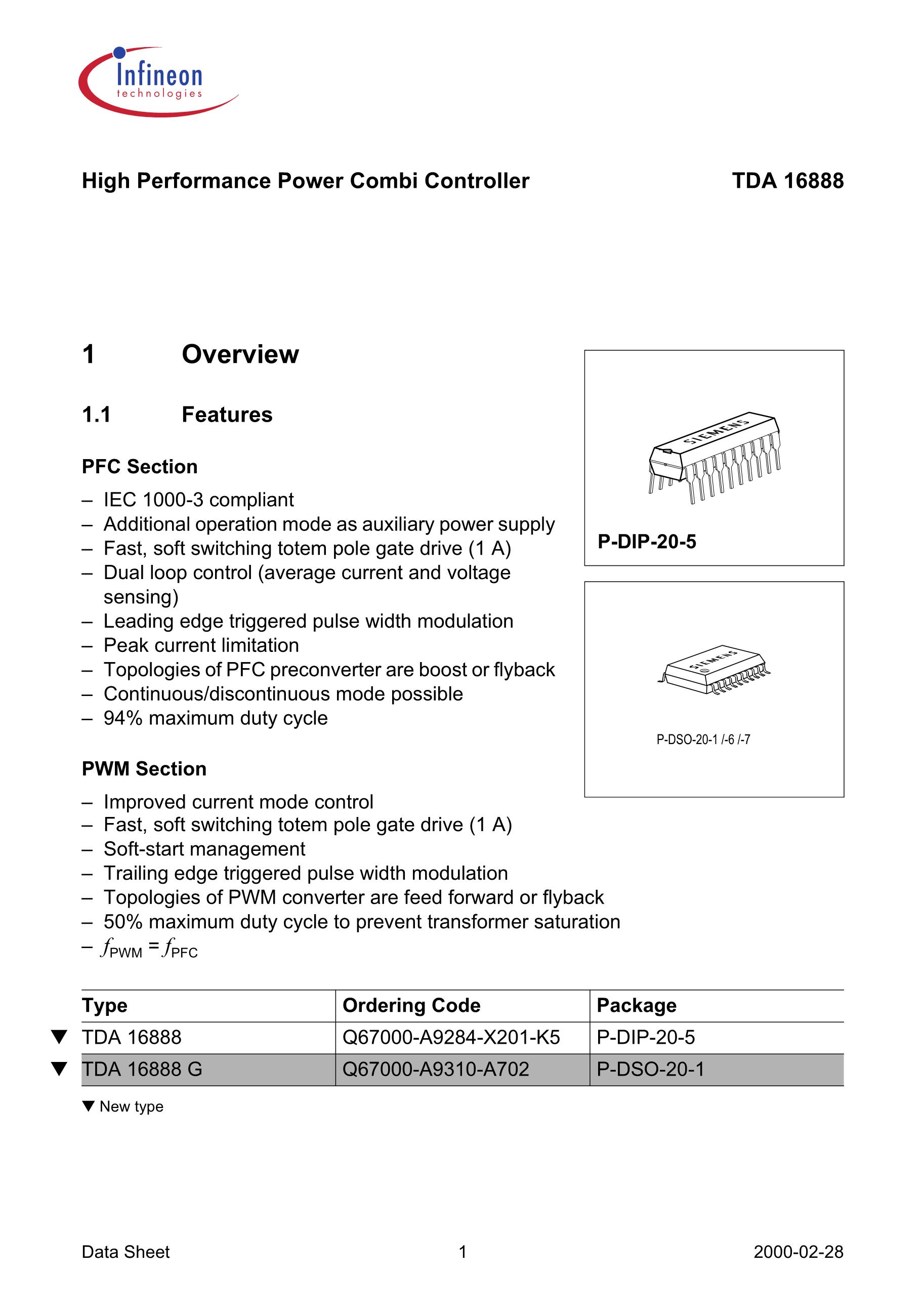

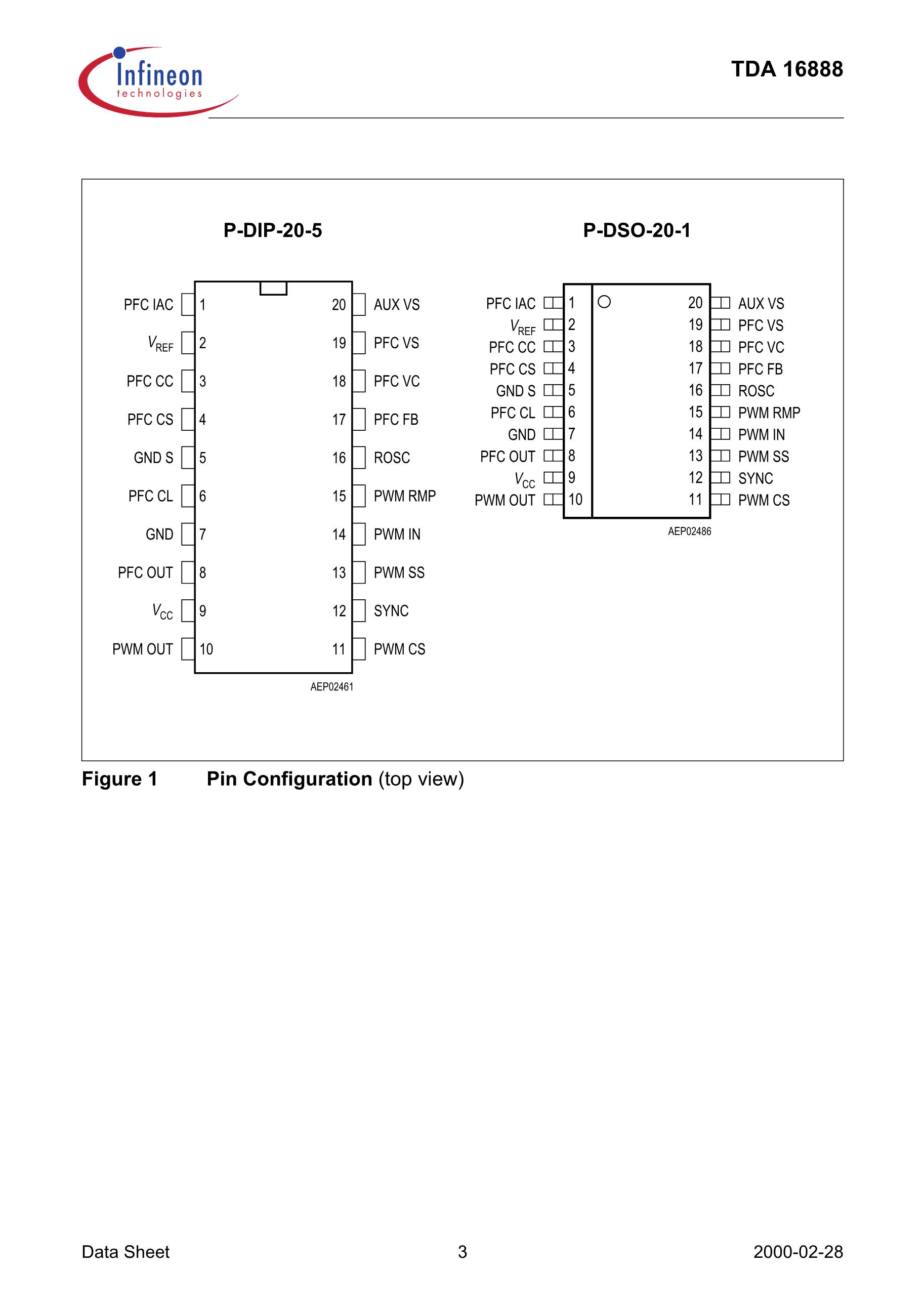

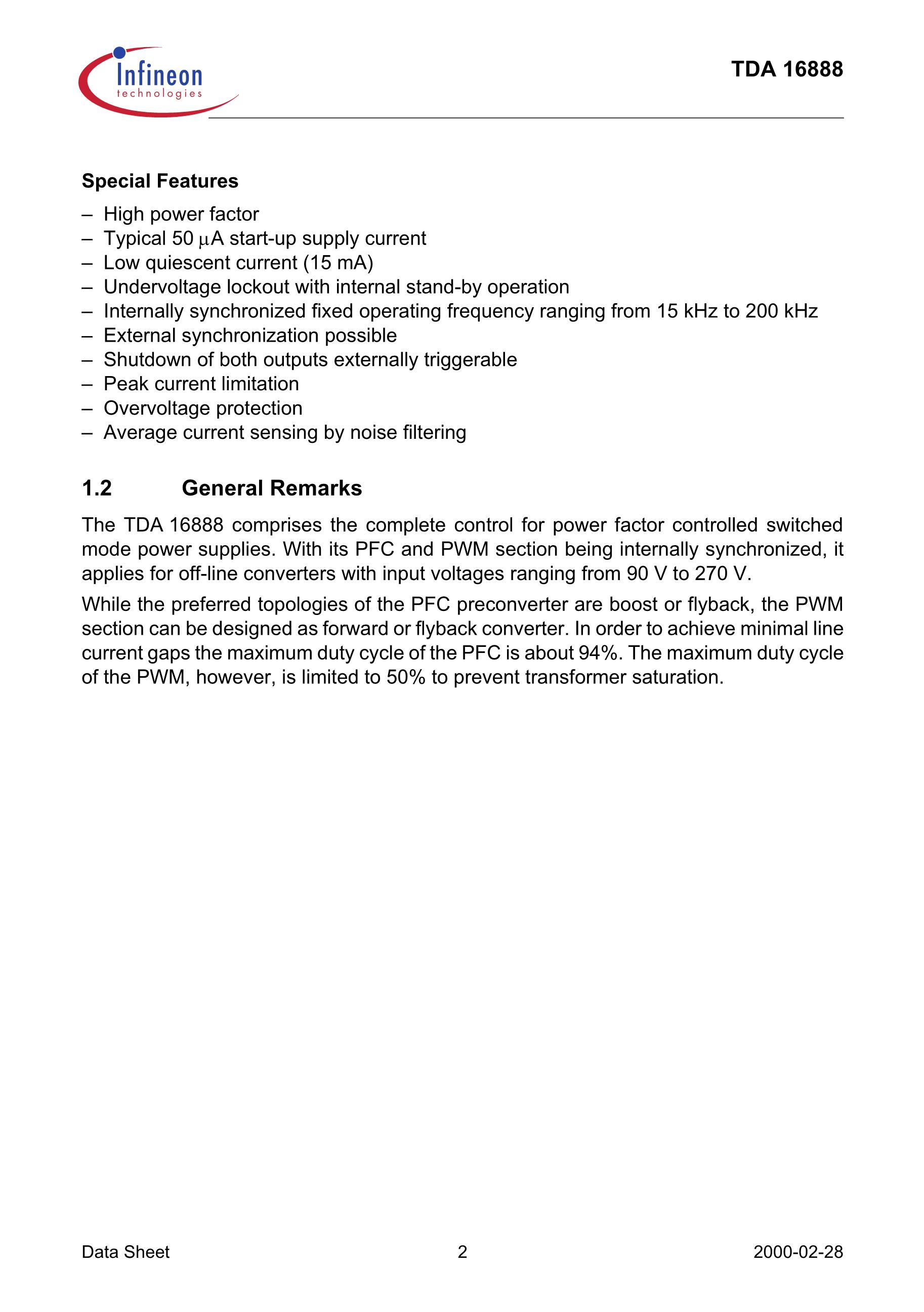

Preview of the first 3 pages of the data sheet
| QUANTITY | UNIT PRICE | PLUS UNIT PRICE | TOTAL PRICE |
|---|---|---|---|
| ≥1: | US $2.04600 | US $1.84140 | US $1.84140 |
| ≥5: | US $1.36400 | US $1.22760 | US $6.13800 |
| ≥10: | US $1.22760 | US $1.10484 | US $11.04840 |
| ≥20: | US $1.19350 | US $1.07415 | US $21.48300 |
| ≥50: | US $1.15940 | US $1.04346 | US $52.17300 |
| ≥100: | US $1.12530 | US $1.01277 | US $101.27700 |
| ≥200: | US $1.09120 | US $0.98208 | US $196.41600 |
| ≥500: | US $1.07756 | US $0.96980 | US $484.90000 |
| ≥1000: | US $1.05710 | US $0.95139 | US $951.39000 |
Substitute (equivalent) Product
| Substitute Product | Brief Description |
|---|---|
| UCC3843 | High-performance current-mode PWM controller, used in off-line and DC-to-DC converter applications. |
| NCP1200 | A highly integrated PWM controller designed for off-line power supply applications, with a lower standby power consumption. |
| UC3845 | High-speed, low-cost PWM controller ideal for off-line and DC-to-DC converter applications, and supports current-mode control. |
| MC33368 | Quasi-resonant operation PWM controller, offers enhanced performance with lower standby power consumption. |
| SG6848 | Highly-integrated PWM controller for off-line switch mode power supply (SMPS) applications, featuring high-efficiency and low standby power. |
Product Usage
The TDA16888 is an integrated Switched-Mode Power Supply (SMPS) controller IC, which is commonly used in a variety of power supply circuits. Here are some typical applications and circuits where the TDA16888 might be used:
ATX Power Supplies: The TDA16888 can be found in ATX power supplies for desktop computers, providing the necessary control for efficient power conversion and regulation.
LCD and LED TV Power Supplies: It helps regulate the power supply in modern LCD and LED televisions, ensuring stable and efficient power delivery to various components.
Monitor Power Supplies: The IC is also used in the power supplies of computer monitors to ensure they receive a consistent and reliable power source.
Consumer Electronics: Various consumer electronics requiring efficient SMPS design, such as DVD players, set-top boxes, and game consoles, might use the TDA16888.
Industrial Power Supplies: In industrial applications, the TDA16888 can serve as the heart of reliable and efficient power supply units for various industrial electronics and control systems.
Battery Chargers: It might be used in intelligent battery charger circuits to manage the conversion of AC mains power to the required DC voltage and current for charging batteries.
The TDA16888 is specifically designed to control power supply systems, offering features such as soft-start, over-voltage, over-current protection, and precise control of the switching frequency. These functionalities make it a versatile component in the design of modern, efficient power supply systems.
