AD7226KN
AD7226KN has several brands around the world that may have alternate names for AD7226KN due to regional differences or acquisition. AD7226KN may also be known as the following names:
All sellers
4
Brand new
4
Certified preowned
4
Official
4
Third Party
4
Description

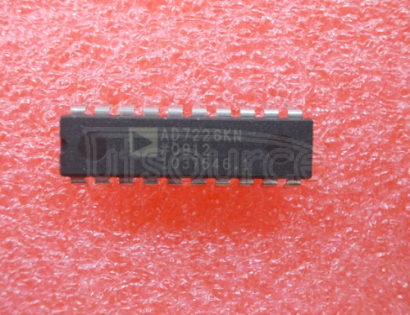

AD7226KN
Stock:33915 |
Analog Devices N/A |
LC2MOS Quad 8-Bit D/A Converter |
≥1: US $1.77360 US $1.59624 ≥5: US $1.18240 US $1.06416 ≥10: US $1.06416 US $0.95774 ≥20: US $1.03460 US $0.93114 ≥50: US $1.00504 US $0.90454 ≥100: US $0.97548 US $0.87793 ≥200: US $0.94592 US $0.85133 ≥500: US $0.93410 US $0.84069 ≥1000: US $0.91636 US $0.82472
More:
Inquiry
|
AD7226KN
Stock:1063 |
Analog Devices 98+ |
LC2MOS Quad 8-Bit D/A Converter |
≥1: US $12.96416 US $11.66774
More:
Inquiry
|
AD7226KN
Stock:43259 |
12+ |
N/A |
≥1: US $1.63449 US $1.47104
More:
Inquiry
|
|
AD7226KN
Stock:210 |
00+ |
LC2MOS Quad 8-Bit D/A Converter |
≥1: US $4.14909 US $3.73418
More:
Inquiry
|
AD7226KN
Stock:60 |
Analog Devices 11+ |
LC2MOS Quad 8-Bit D/A Converter |
≥1: US $3.35280 US $3.01752
More:
Inquiry
|
FEATURES
Four 8-Bit DACs with Output Amplifiers
Skinny 20-Pin DIP, SOlC and 20-Terminal
Surface Mount Packages
Microprocessor Compatible
TTL/CMOS Compatible
No User Trims
Extended Temperature Range Operation
Single Supply Operation Possible
APPLICATIONS
Process Control
Automatic Test Equipment
Automatic Calibration of Large System Parameters, e.g. Gain/Offset
GENERAL DESCRIPTIO N
The A D7226 contains four 8-bit voltage-output digital-to-analog converters,with output buffer amplifiers and interface logic on a single monolithic chip. No external trim s are required to achieve full specified performance for the part.
Separate on-chip latches are provided for each of the four D/A converters. Data is transferred into one of these data latches through a common 8-bit TTL/CMOS (5V) compatible input port. Control inputs A0 and A1 determine which DAC is loaded when WR goes low. The control logic is speed-compatible with most 8-bit microprocessors.
Each D/A converter includes an output buffer amplifier capable of driving up to 5mA of output current. The amplifiers' offsets are laser-trimmed during manufacture, thereby eliminating any requirement for offset nulling.
Specified performance is guaranteed for input reference voltages from +2V to + 12.5V with dual supplies. The part is also specified for single supply operation at a reference of +10V.
The AD7226 is fabricated in an all ion-implanted high speed Linear Compatible CMOS (LC2MOS) process which has been specifically developed to allow high speed digital logic circuits and precision analog circuits to be integrated on the same chip.
PRODUCT HIGHLIGHTS
1. DAC-to-DAC Matching
Since all four DACs are fabricated on the same chip at the same time, precise matching and tracking between the DACs is inherent.
2. Single Supply 0peration
The voltage mode configuration of the DACs allows the AD7226 to be operated fro m a single power supply rail.
3. M icroprocessor Compatibility
The AD7226 has a common 8-bit data bus with individual DAC latches, providing a versatile control architecture for simple interface to microprocessors. All latch enable signals are level triggered.
4. Small Size
Combining four DACs and four opamps plus interface logic into a 20-pin DIP or S0IC or a 20-ter minal surface mount package allows a dramatic reduction in board space require-ments and offers increased reliability in systems using multiple converters. Its pinout is aimed at optimizing board layout with all the analog inputs and outputs at one end of the package and all the digital inputs at the other.
