20W TO 140W STEP-DOWN SWITCHING REGULATOR FAMILY
All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
The parameters and performance indicators of this product are sourced from the internet. In case of discrepancies, please refer to the manufacturer's technical specifications!！
Introduction:
This is a 20W TO 140W Step down switching regulator. It is a member of the GS-R400 series made by SGS – Thomson Microelectronics. The GS-R405S is among the family of the GS-R400 series, which are a family of high current, high voltage step-down switching voltage regulators.
The heatsink integrated to the GS-R405S allows for a large power handling capacity and it also offers an effective shielding to minimize Electro Magnetic Interference (EMI). The GS-R405S electronic module case is isolated from the electrical circuit of the switching regulator. It can be grounded using the 4 corner pins. Another added advantage of the PCB area below the GS-R405S module is that it can be used as an effective sixth side shield against EMI.
Features:
● MTBF in excess of 200,000 hours
● 4A max output current
● 46V max input voltage
● 4V max drop-out voltage
● Soft start
● Remote logic inhibit/enable
● Remote output voltage sense
● Non-latching overload and short circuit protection
● Crow-bar output overvoltage protection
● It can reset its output
Parameters:
● Output Voltage, V – 5.1 ±2% Volts
● Input Voltage, V – 9 to 46 Volts
● Output Ripple, mVpp – 25
● Regulation:Line, mv/V -2
Load, mv/A – 20
● Efficiency, % - 70
● DC Input Voltage, V - 48Volts
● Reset Output Sink Current, I – 20 milliAmperes
● Storage Temperature Range, Tstg - -40 to +105℃
Applications:
It can be made used of in;
● Power supply liness
● Converters

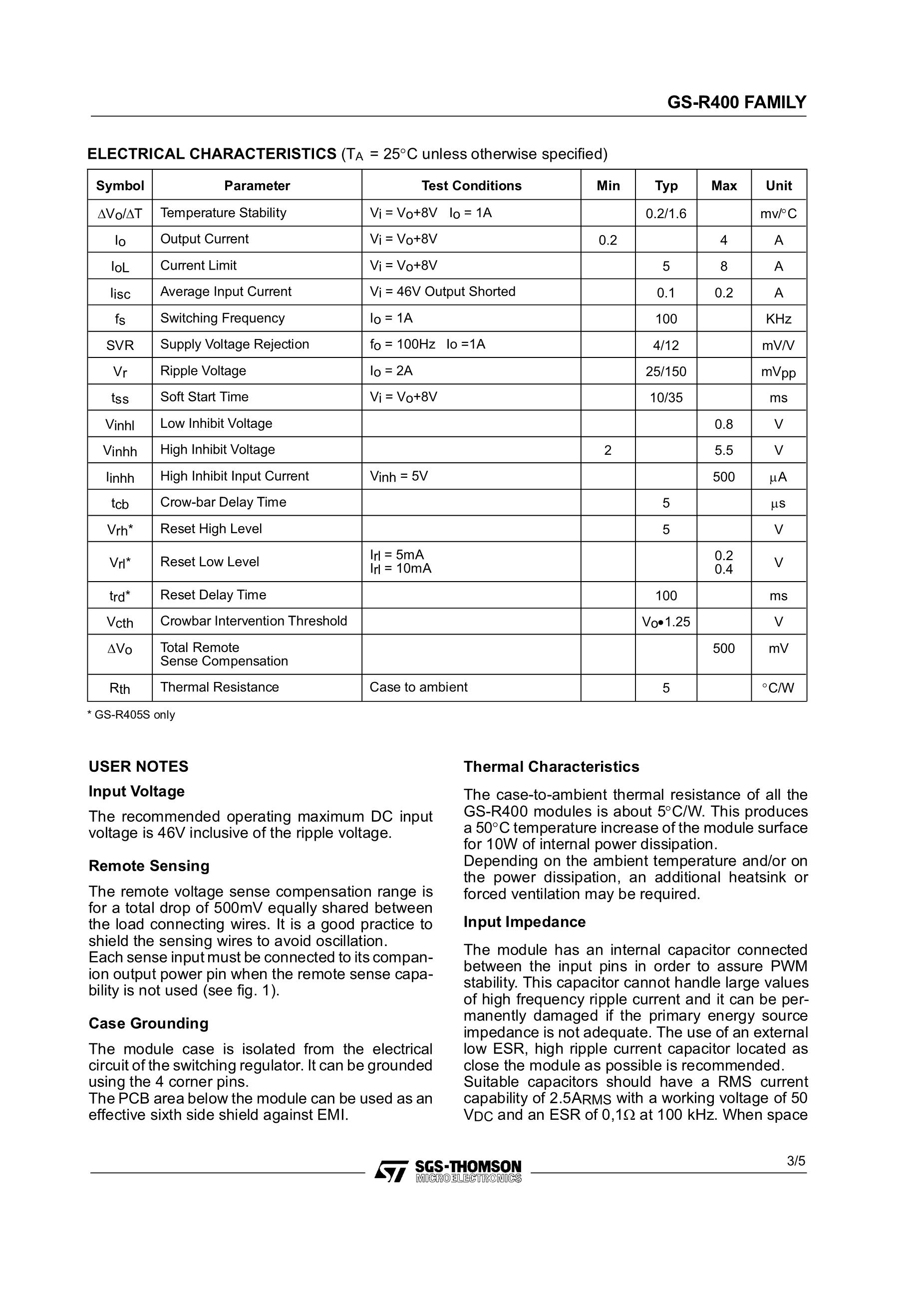

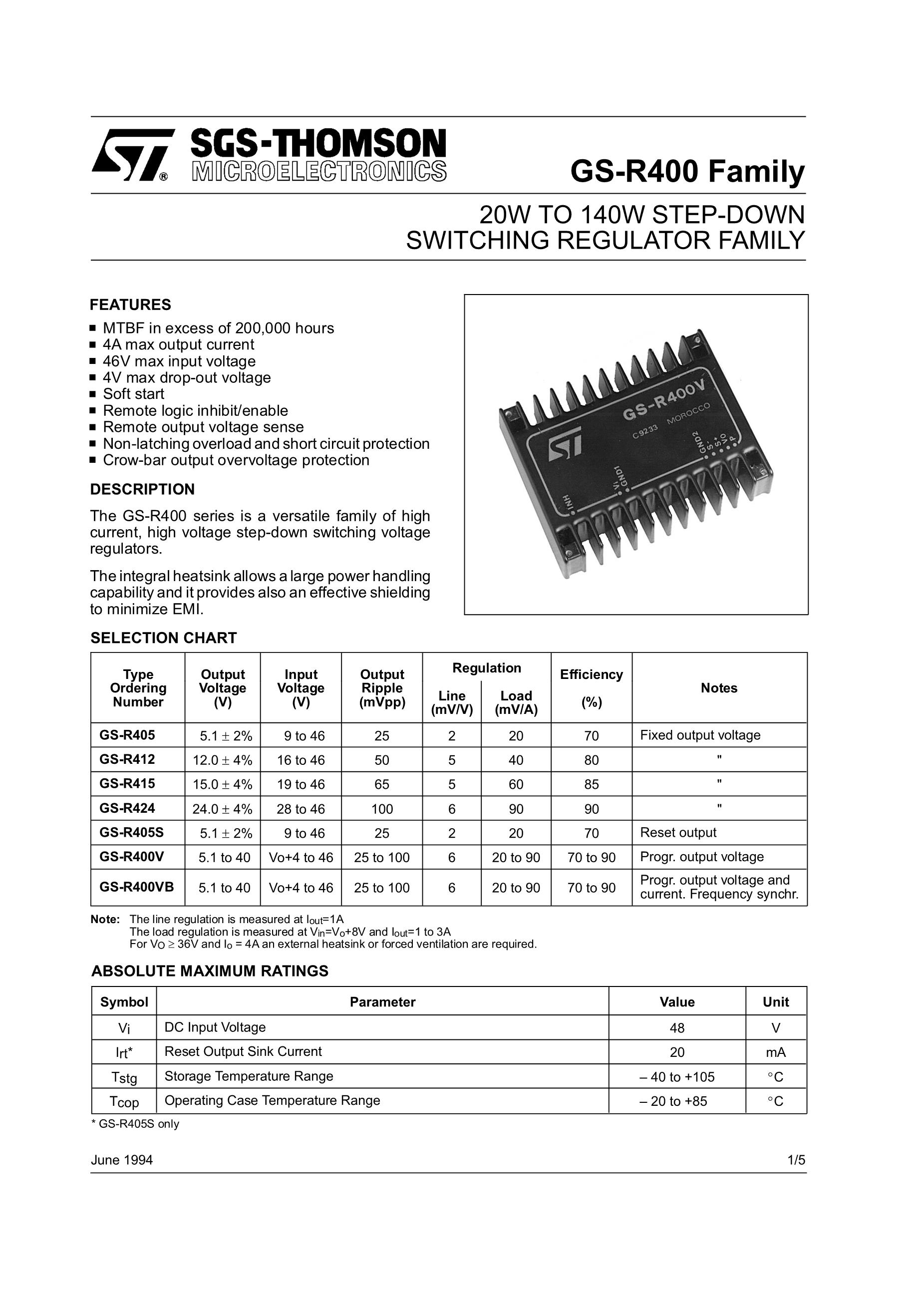

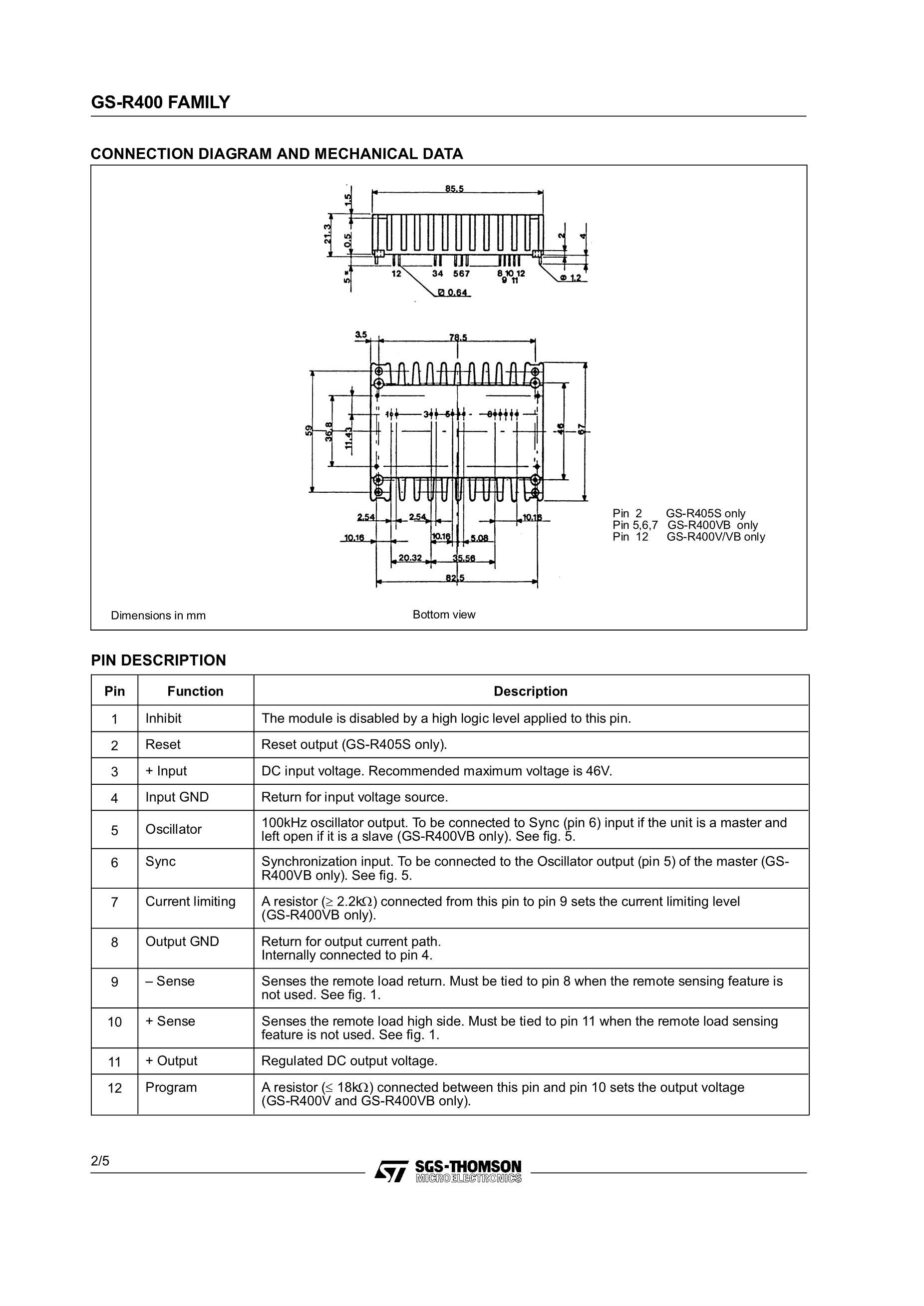

Preview of the first 3 pages of the data sheet
