Description
LINEAR INTEGRATED CIRCUITS 3-TERMINAL VOLATGE REGULATORS
All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
The parameters and performance indicators of this product are sourced from the internet. In case of discrepancies, please refer to the manufacturer's technical specifications!！

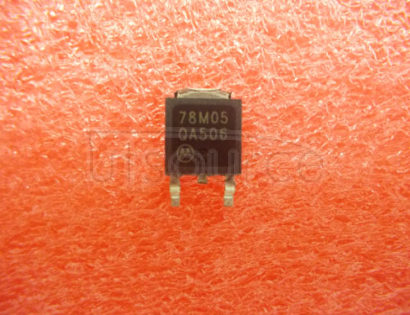

78M05 or 7805 is one of the most used voltage regulators among the hobby electronic enthusiasts. As you might known before 78M05 is capable of regulating up to 24V DC in to 5V DC with few or none external components. 78M05 comes from a voltage regulator family called 78 series. So in 78M05 78 is the series of the regulator and the last two numbers indicates the output voltage of that particular voltage regulator. In 78M05 case 05 means output voltage of 5V. So 78M12 means output voltage of 12V, 78M09 means output voltage of 9V etc. 78M05 comes in various packages like TO-220 THT package D-PAK SMD package and several other types as well. Also, 78M05 is manufactured by various manufactures as well.
Let’s identify some of the key features of the 78M05 5V regulator IC.
● 0.5A maximum output current.
● Thermal protection for overloaded circuits
● Output short circuit protection
● Operational up to 150 degrees of Celsius
● Maximum of 100mV line regulation
● Low temperature to output voltage drift
● Very low output voltage noise of 40uA per volt
● 2V input dropout voltage
● 700mA peak current capabilities
● 80dB ripple rejection capabilities

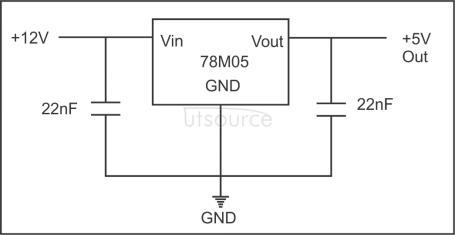

78M05 is a very versatile IC. As mentioned before 78M05 can be used with very few or without external components. If you supply 7V DC to 24V DC to the input pin of the 78M05 voltage regulator you will get regulated 5V DC output from it’s output pin. This is the most basic setup for the 78M05 voltage regulator. However, we can use two filter capacitors parallel with the input and output to reduce noise and ripples. Such circuit with 78M05 voltage regulator and two capacitors is given in the below circuit diagram.

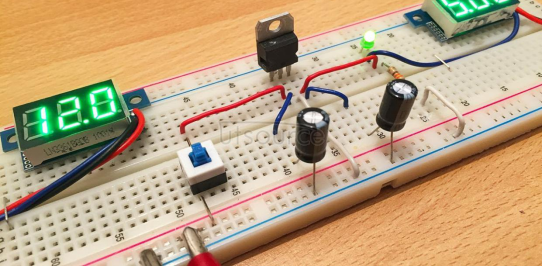

As you can see there is only two external components in this circuit. Values for the capacitors are can be chosen according to the datasheet. If the input supply is with high noise levels it would be better to use high capacity capacitors for the input side to keep the noises to a lower level. In a low noise circuit you can use the 78M05 regulator without any capacitors. Given below is a actual circuit setup using 78M05 voltage regulator.
This is setup on a breadboard as mentioned above you can see there are two filter capacitors used in this circuit as well. In here there is a LED to indicate the output voltage and also there are two seven segment voltage meters to indicate the voltage values of the input and the output. As the conclusion 78M05 is one of the most used voltage regulators as 5V is one of the standard logic voltage levels.
| QUANTITY | UNIT PRICE | PLUS UNIT PRICE | TOTAL PRICE |
|---|---|---|---|
| ≥1: | US $0.23870 | US $0.21483 | US $0.21483 |
| ≥10: | US $0.17050 | US $0.15345 | US $1.53450 |
| ≥50: | US $0.13640 | US $0.12276 | US $6.13800 |
| ≥100: | US $0.12276 | US $0.11048 | US $11.04800 |
| ≥150: | US $0.11594 | US $0.10435 | US $15.65250 |
| ≥200: | US $0.11253 | US $0.10128 | US $20.25600 |
| ≥500: | US $0.11117 | US $0.10005 | US $50.02500 |
| ≥1000: | US $0.10980 | US $0.09882 | US $98.82000 |
| ≥3000: | US $0.10912 | US $0.09821 | US $294.63000 |
Substitute (equivalent) Product
| Product Name | Description |
|---|---|
| 78L05 | 5V Low Dropout Linear Regulator, TO-92 Package |
| LM2936-5.0 | 5V Low Dropout Linear Regulator, SOT-23 Package |
| UA7805 | 5V Positive Voltage Regulator, TO-220 Package |
| LD1117V50 | 5V Low Dropout Linear Regulator, TO-220 and SOT-223 Packages |
| MC7805 | 5V Positive Voltage Regulator, TO-220 and TO-3 Packages |
Product Usage
The 78M05 is a low-power, fixed-voltage linear regulator that provides a stable 5V output voltage. It is commonly used in various circuits where a small, reliable, and simple 5V power supply is needed. Here are some typical applications:
Microcontroller Circuits: Many microcontrollers, such as the ATmega328P (used in Arduino boards), require a stable 5V supply. The 78M05 can be used to provide this voltage from a higher input voltage.
Sensor Interfaces: Sensors often need a stable 5V supply to operate correctly. The 78M05 can be used to power these sensors, ensuring consistent performance.
Small Electronic Projects: In hobbyist and DIY projects, the 78M05 is often used to regulate power for small circuits, such as LED drivers, simple logic circuits, or small signal amplifiers.
Battery-Powered Devices: For devices powered by batteries, the 78M05 can step down the battery voltage to a stable 5V. This is useful in portable electronics and remote sensors.
Power Supply Modules: The 78M05 can be integrated into power supply modules that provide a regulated 5V output for multiple components or sub-circuits.
Communication Interfaces: Devices that use serial communication, USB, or other interfaces often require a stable 5V supply, which the 78M05 can provide.
Here is a simple example of how the 78M05 can be used in a circuit:
Required+Vin (e.g., 9V) ----|----|---- GND
| |
C1 C2
| |
--- ---
78M05
+5V
The 78M05 is a robust and straightforward component, making it a popular choice for many low-power applications where a stable 5V supply is required.
