Description
Power Factor Correction PFC and PWM Controller Combo
No of Pins: 8
Container: Rail
All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
The parameters and performance indicators of this product are sourced from the internet. In case of discrepancies, please refer to the manufacturer's technical specifications!！
Features
● Internally synchronized PFC and PWM in one 8-pin IC
● Proprietary one-pin voltage error amplifier with advanc input current shaping technique
● Peak or average current,continuous boost, leading edge PFC (Input Current Shaping Technology)
● High efficiency trailing-edge current mode PWM
● Low supply currents; start-up: 150uA typ., operating: 2mA typ.
● Synchronized leading and trailing edge modulation
● Reduces ripple current in the storage capacitor between the PFC and PWM sections
● Over voltage, UVLO, and brownout protection
● PFC VCCOVP with PFC Soft Start
General Description
The FAN4803 is a space-saving controller for power factor corrected, switched mode power supplies that offers very low start-up and operating currents.
Power Factor Correction (PFC) offers the use of smaller, lower cost bulk capacitors, reduces power line loading and stress on the switching FETs, and results in a power supply fully compliant to IEC1000-3-2 specifications. The FAN4803 includes circuits for the implementation of a leading edge, average current “boost” type PFC and a trailing edge, PWM.
The FAN4803-1 's PFC and PWM operate at the same frequency, 67kHz. The PFC frequency of the FAN4803-2 is automatically set at half that of the 134kHz PWM. This higher frequency allows the user to design with smaller PWM components while maintaining the optimum operating frequency for the PFC.An over voltage comparator shuts down the PFC section in the event of a sudden decrease in load.The PFC section also includes peak current limiting for enhanced system reliability.

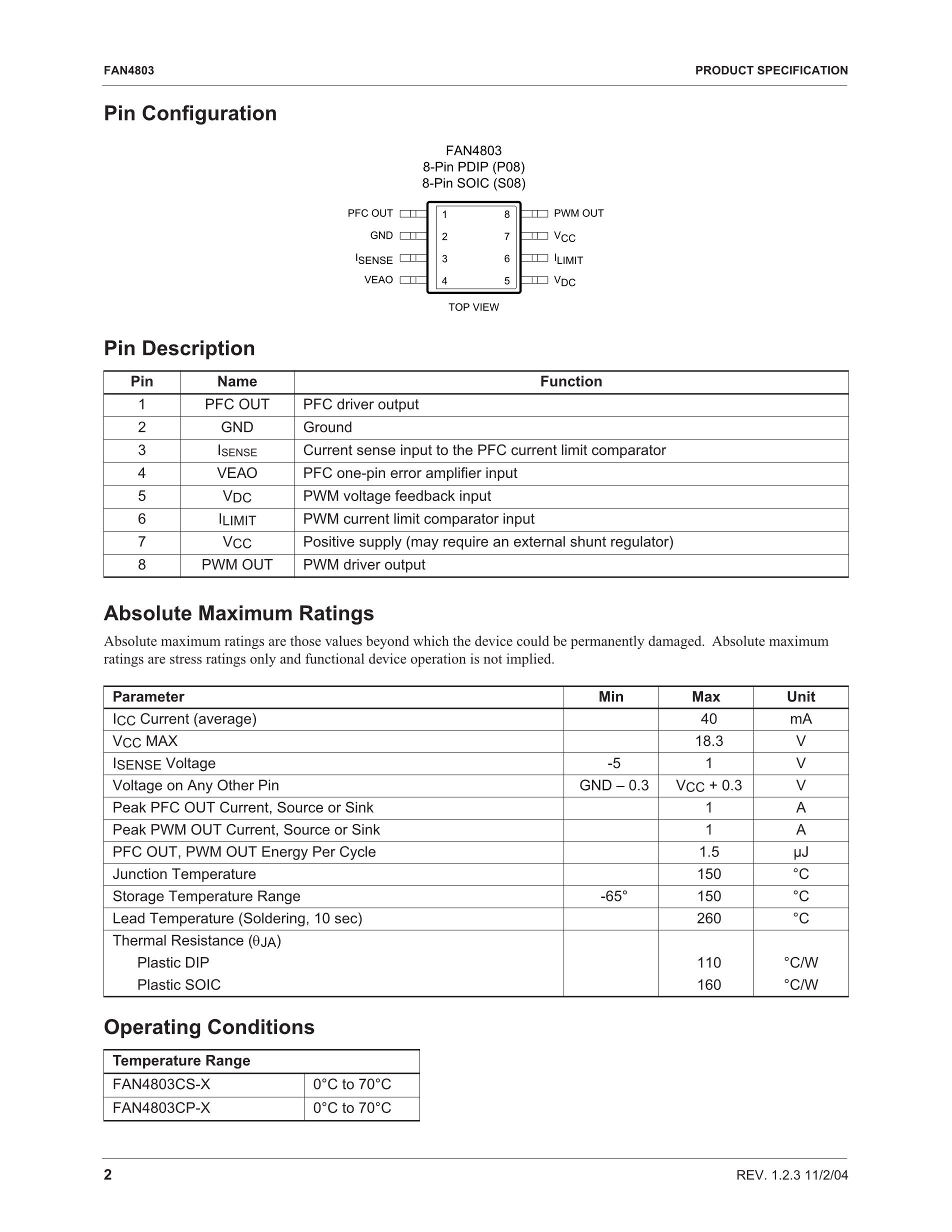

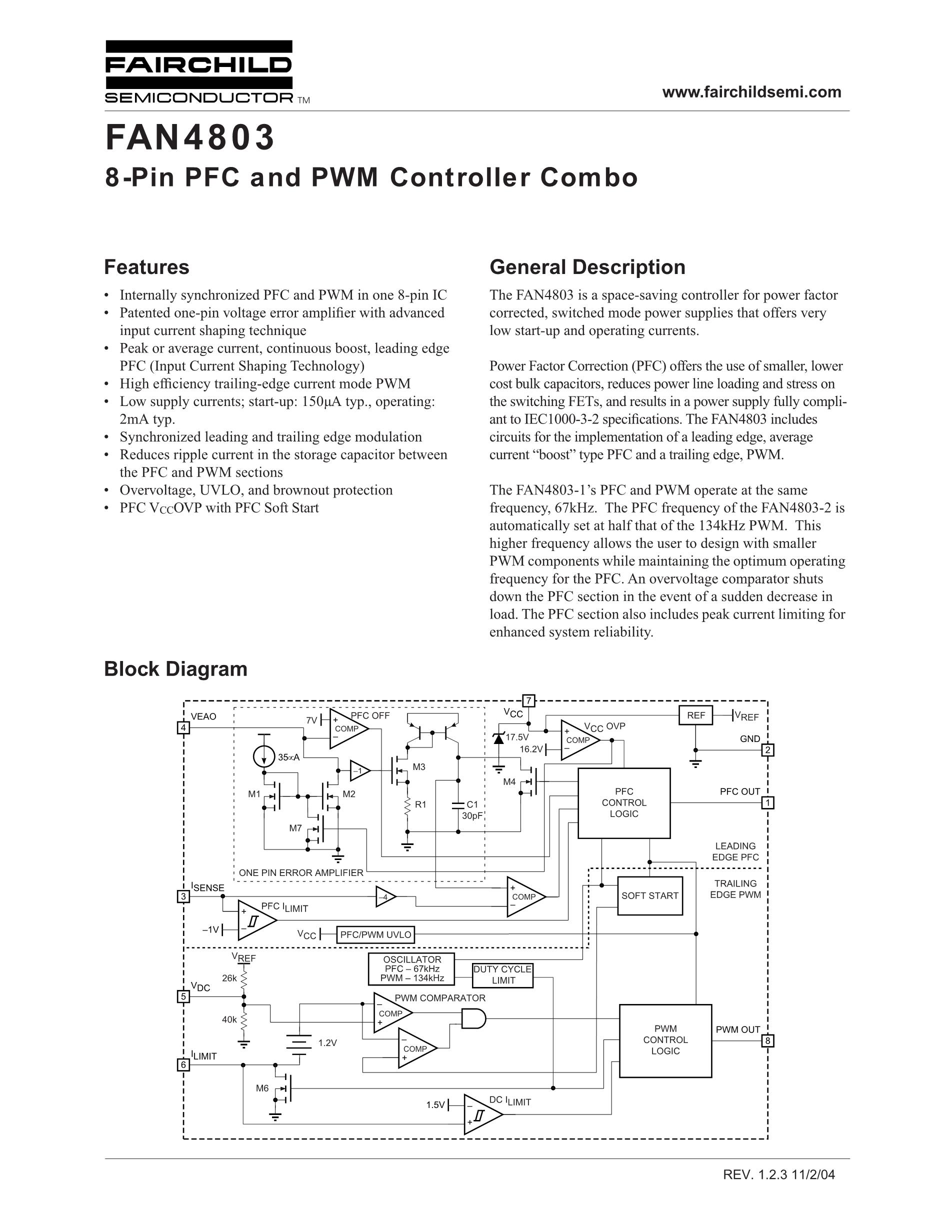

Preview of the first 3 pages of the data sheet
| QUANTITY | UNIT PRICE | PLUS UNIT PRICE | TOTAL PRICE |
|---|---|---|---|
| ≥1: | US $1.46055 | US $1.31450 | US $1.31450 |
| ≥5: | US $0.97370 | US $0.87633 | US $4.38165 |
| ≥10: | US $0.87633 | US $0.78870 | US $7.88700 |
| ≥20: | US $0.85199 | US $0.76679 | US $15.33580 |
| ≥50: | US $0.82764 | US $0.74487 | US $37.24350 |
| ≥100: | US $0.80330 | US $0.72297 | US $72.29700 |
| ≥200: | US $0.77896 | US $0.70106 | US $140.21200 |
| ≥500: | US $0.76922 | US $0.69230 | US $346.15000 |
| ≥1000: | US $0.75462 | US $0.67916 | US $679.16000 |
Substitute (equivalent) Product
| Substitute Product | Description |
|---|---|
| SG3525A | PWM controller designed for efficient synchronous switching to convert DC to DC power levels. |
| UC3525A | Advanced PWM controller used in switching power supplies with high performance. |
| TL494CN | Switchmode Pulse Width Modulation Control Circuit optimizing power efficiency. |
| KA3525A | PWM controller offering wide power supply operating range and reliable control. |
| NCP1252 | Voltage mode PWM current-mode controller designed for high-performance and low power consumption. |
Product Usage
The FAN4803CP2 is a power factor correction (PFC) and pulse-width modulation (PWM) controller IC designed for use in various power supply circuits. It is particularly suitable for a range of applications where improved power efficiency, power factor correction, and reliable power conversion are required. Here are some common applications and types of circuits that use the FAN4803CP2:
Power Supply Units (PSUs): This includes ATX power supplies for computers, industrial power supplies, and embedded power supplies. The FAN4803CP2 helps in achieving high efficiency and low Total Harmonic Distortion (THD).
AC-DC Converters: Used in adapters, chargers, and other devices that convert AC input to regulated DC output.
LED Drivers: For high-efficiency driving of LED lighting systems. The PFC component of the FAN4803CP2 helps to meet regulatory standards for harmonic emissions.
Battery Chargers: Including those for electric vehicles, portable electronics, and backup power systems.
Industrial Power Systems: Used in various industrial applications where reliable power delivery and efficiency are crucial, such as in motors, heating systems, and factory equipment.
Audio Amplifier Power Supplies: Ensuring that audio equipment receives stable and clean power to enhance audio performance and reduce noise.
Telecommunications Power Systems: Used in equipment that supports telecommunications infrastructure which requires high reliability and efficiency.
The FAN4803CP2 integrates both PFC and PWM control, making it suitable for single-stage or two-stage power conversion systems. These characteristics make it a versatile choice for engineers designing efficient and compliant power solutions.
