Description
Insulated Gate Bipolar Transistor
All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
The parameters and performance indicators of this product are sourced from the internet. In case of discrepancies, please refer to the manufacturer's technical specifications!！
| QUANTITY | UNIT PRICE | PLUS UNIT PRICE | TOTAL PRICE |
|---|---|---|---|
| ≥1: | US $90.10650 | US $84.70011 | US $84.70011 |
| ≥2: | US $90.10650 | US $84.70011 | US $169.40022 |
| ≥5: | US $84.09940 | US $79.05344 | US $395.26720 |
| ≥10: | US $84.09940 | US $79.05344 | US $790.53440 |
| ≥20: | US $84.09940 | US $79.05344 | US $1581.06880 |
| ≥30: | US $84.09940 | US $79.05344 | US $2371.60320 |
| ≥50: | US $84.09940 | US $79.05344 | US $3952.67200 |
| ≥100: | US $83.49869 | US $78.48877 | US $7848.87700 |
| ≥500: | US $82.89798 | US $77.92410 | US $38962.05000 |
Substitute (equivalent) Product
| Substitute Product | Brief Description |
|---|---|
| 7MBR75NF120-50 | 75A, 1200V IGBT module for motor drive inverters and general-purpose inverters. Excellent thermal performance. |
| 7MBR75U4A120-50 | 75A, 1200V IGBT module designed for high power applications, providing high efficiency and reliability. |
| 7MBR75NF060 | 75A, 600V IGBT module suitable for medium voltage applications, offering efficient power switching capabilities. |
| 6MBP75NA120 | 75A, 1200V IGBT power module designed for various inverter applications, combining low loss and rugged design. |
| PM75RLA120 | 75A, 1200V IGBT power module with built-in protection circuitry, ideal for motor control and industrial applications. |
Product Usage

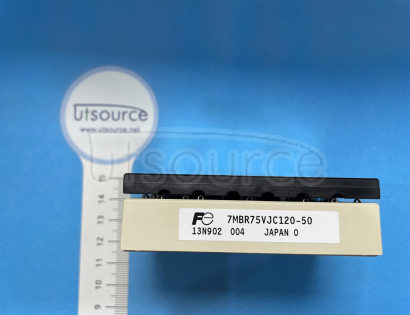

The 7MBR75VJC120-50 is an Insulated Gate Bipolar Transistor (IGBT) module manufactured by Fuji Electric. It is designed for high-power applications due to its ability to handle large currents and high voltages efficiently. This specific IGBT module is particularly suitable for use in the following types of circuits and applications:
Inverters: Used in both industrial and renewable energy applications (e.g., solar and wind power systems) for converting DC to AC power.
Motor Drives: Employed in variable frequency drives (VFD) and servo drives for motor control in industrial automation, electric vehicles, and other motor-driven equipment.
Uninterruptible Power Supplies (UPS): Utilized in UPS systems to provide backup power by converting stored DC power from batteries to AC power.
Welding Machines: Applied in welding equipment for efficient and precise control of welding currents and voltages.
Power Supply Units (High-Power): Incorporated in high-power switch-mode power supplies (SMPS) for industrial applications requiring efficient power conversion.
HVAC Systems: Used in Heating, Ventilation, and Air Conditioning (HVAC) systems for controlling compressors and other components.
Induction Heating: Incorporated into induction heating systems for metal processing and other industrial applications.
Renewable Energy Systems: Employed in energy storage systems, electric vehicle charging stations, and other renewable energy applications.
The 7MBR75VJC120-50 features a combination of high current capability, high voltage tolerance, and efficient switching performance, making it suitable for these demanding applications. When considering this IGBT module for a specific application, it's important to review its electrical characteristics, thermal management requirements, and mechanical design to ensure it meets the design specifications and operational demands of the intended circuit.
