Description
430-450MHz, 12.5V, 45W, FM MOBILE RADIO
All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
The parameters and performance indicators of this product are sourced from the internet. In case of discrepancies, please refer to the manufacturer's technical specifications!！

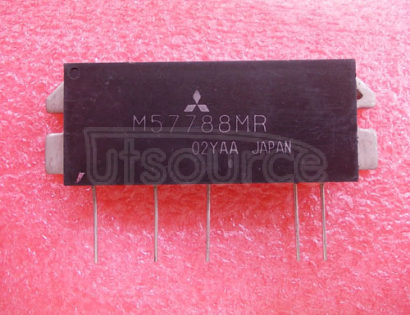

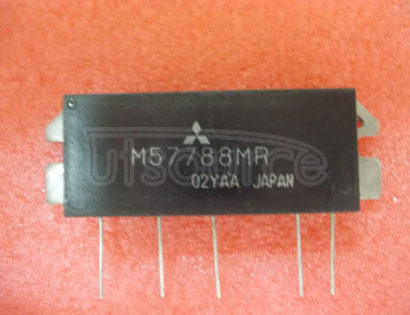

RF Power Module M57788MR is designed by Mitsubishi Electronics to Power Amplify the RF (Radio Frequency signal). This is three stage module with 3 DC supply options and designed for frequency range of 430-450MHz with power output of 45W for frequency Modulated Mobile Radio. Input DC supply rating is 12.5V.
Following are Absolute Maximum Ratings;
1- Supply Voltage 17 V
2- Total Supply Current 12 A
3- Input Power Max @ load impedance of 50 ohms is 0.8W
4- Output Power Max @ load impedance of 50 ohms is 50W
5- Frequency Limit 430-450MHz
Such Gain block amplifiers are used throughout the transceiver design to provide high linearity and low noise signal amplification also to further drive the high power stages within an amplifier. M57788MR is 50 ohm matched and can be cascaded without external impedance matching networks for RF and IF applications. The Pin configuration of the module for respective pins is as given below;
1- RF input
2- 1st DC Supply
3- 2nd DC Supply
4- 3rd DC Supply
5- RF output
6- Ground
This module has thermal ratings of -30°C to 110°C Operation Case Temperature and Voltage Standing wave ratio for the module is 8.8:1.
| QUANTITY | UNIT PRICE | PLUS UNIT PRICE | TOTAL PRICE |
|---|
Substitute (equivalent) Product
| Product Name | Description |
|---|---|
| MRF154 | RF Power Transistor, 26V, 400W, 500-960 MHz |
| BLF278 | VHF power MOS transistor, 48V, 300W, 88-108 MHz |
| MRF151 | RF Power Field Effect Transistor, 150W, 28V, 30-150 MHz |
| MRF426 | NPN Silicon Power Transistor, 12.5V, 90W, 1-150 MHz |
| SD1478 | RF Power Transistor, 28V, 150W, 800-1000 MHz |
| BLF246 | VHF power LDMOS transistor, 28V, 150W, 144-174 MHz |
| MRF453 | NPN Silicon RF Transistor, 28V, 200W, 30-76 MHz |
These components serve as potential substitutes for the M57788MR, and are commonly used in RF amplification applications.
Product Usage
The M57788MR is a specific RF (radio frequency) power amplifier module designed and manufactured by Mitsubishi. It is typically used in circuits and applications that require amplification of RF signals, particularly in wireless communication systems. Here are some common uses and applications for circuits incorporating the M57788MR:
Mobile Communication Systems:
RF Transmitters:
Broadcasting Equipment:
Microwave Communication Systems:
RF Signal Boosters:
RF Test Equipment:
Wi-Fi and Bluetooth Devices (High Power Applications):
When designing a circuit with the M57788MR, engineers typically integrate it with other components such as RF input and output matching networks, power supplies, heatsinks for thermal management, and sometimes control circuits for gain adjustment or biasing. Careful consideration must be given to the operating frequency, power levels, and thermal considerations due to the high power amplification involved.
