TC4420
TC4420 has several brands around the world that may have alternate names for TC4420 due to regional differences or acquisition. TC4420 may also be known as the following names:
All sellers
1
Brand new
1
Certified preowned
1
Official
1
Third Party
1
Description

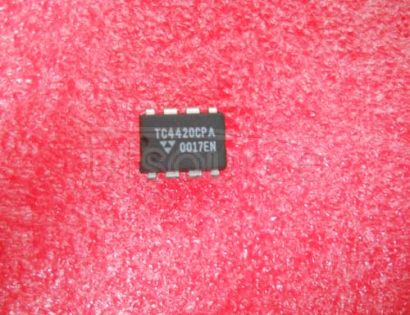

TC4420
Stock:9999 |
Tos/microchi 03+ |
6A HIGH-SPEED MOSFET DRIVERS |
≥1: US $1.56180 US $1.40562 ≥5: US $1.04120 US $0.93708 ≥10: US $0.93708 US $0.84337 ≥20: US $0.91105 US $0.81994 ≥50: US $0.88502 US $0.79652 ≥100: US $0.85899 US $0.77309 ≥200: US $0.83296 US $0.74966 ≥500: US $0.82255 US $0.74029 ≥1000: US $0.80693 US $0.72624
More:
Inquiry
|
FEATURES
● Latch-Up Protected.....................Will Withstand > 1.5A Reverse Output Current
● Logic Input will Withstand Negative Swing Up to 5V
● ESD Protected .............................................................................................. 4kV
● Matched Rise and Fall Times ....................................................................25nsec
● High Peak Output Current ....................................................................... 6A Peak
● Wide Operating Range ...................................... .................................4.5V to 18V
● High Capacitive Load Drive ....................................... ............................10,000 pF
● Short Delay Time ..................................................................................55nsec Typ
● Logic High Input,Any Voltage ................................................................2.4V to VDD
● Low Supply Current With Logic "1" Input ..................................................... 450μA
● Low Output Impedance ....................................................................................2.5Ω
● Output Voltage Swing to Within 25mV of Ground or VDD
APPLICATIONS
● Switch-Mode Power Supplies
● Motor Controls
● Pulse Transformer Driver
● Class D Switching Amplifiers
GENERAL DESCRIPTION
TheTC4420/4429 are 6A(peak), single output MOSFET drivers.The TC4429 is an inverting driver (pin-compatible with the TC429), while the TC4420 is a non-inverting driver. These drivers are fabricated in CMOS for lower power, more efficient operation versus bipolar drivers.
Both devices have TTL-compatible inputs, which can be driven as high as VDD + 0.3V or as low as -5V without upset or damage to the device. This eliminates the need for external level shifting circuitry and its associated cost and size.The output swing is rail-to-rail ensuring better drive voltage margin, especially during power up/power down sequencing. Propagational delay time is only 55nsec (typ.) and the output rise and fall times are only 25nsec (typ.) into 2500pF across the usable power supply range.
Unlike other drivers,the TC4420/4429are virtually latch-up proof.They replace three or more discrete components saving PCB area, parts and improving overall system reliability.
